SPLITTING HEIGHT54 CMADJUSTABLE |
 |
SPLITTING FORCE9-11 TON |
Powerful, safe and persistent! A choice of quality and prestige.

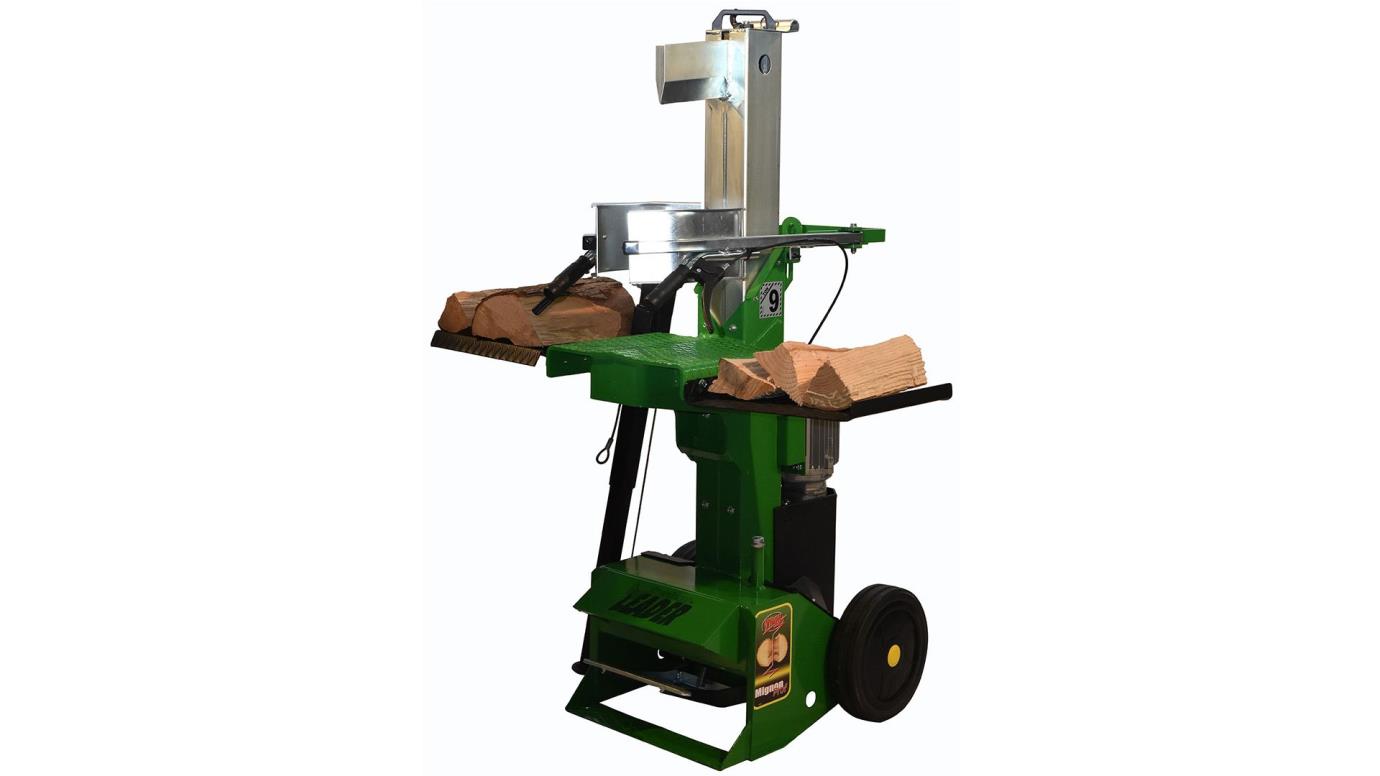

Hydraulic log splitter with vertical working position. With exclusive centering control by pedal!
They split very big and difficult logs with outstanding ease.
Their power has no rivals!
Features |
|---|
The commands are of the “System-LEADER” type. Exclusive log centering control with pedal. |
The splitting stroke is adjustable between 2 and 50 cm. |
Fixed table working position: 54 cm. |
The cutter guides are made of long lasting ertalon. |
They are very easy to use and move. |
The transport wheels are semi-full wheels : 20 cm dia. on the HVP version, 20 cm dia. on the 9 ton EL version, 30 cm dia. on the 11 ton EL version, 40 cm dia. pneumatic wheels (available as optional only for the 11 ton EL version). |
Technical differences compared to the previous model |
New frame and new splitting table |
Extensions on both side included |
Fall arrest guards mounted on both levers |
Side hoist mounted on the left side of the machine. (Patented device!) OPTIONAL |
Available versions |
|
|---|---|
HVP PTO 540 rpm for tractor with single pump |
|
EL 230 Volt with single or double pump |
|
EL 400 Volt with single pump |
|
EL 110 Volt 60 hz engines (upon request) |
|
VS petrol engine with single pump |
|
KOMBI EL+PTO (combined power supply) |
Accessories Find out which accessories fit on the different Mignon Prof models.
 |
 |
 |
60° Cutter |
Lifting hook |
Pneumatic wheels set
|
| Model | Splitting force | Power required Hp - kW |
Splitting dia. capacity cm min - max |
Splitting speed cm/sec |
Total weight (kg) |
|---|---|---|---|---|---|
| 23.101 EL 400 Volt with single pump |
9 Ton | 4 - 3 | 5 - 50 | 5,3 | 153 |
|
23.102 with single pump |
9 Ton | 7 - 5 | 5 - 50 | 4 | 163 |
| 23.110 EL 400 Volt with double pump |
11 Ton | 3 - 2,2 | 5 - 60 | 7,9 | 158 |
|
23.111 EL 400 Volt |
11 Ton | 5,5 - 4 | 5 - 60 | 7,2 | 158 |
|
23.112 VS petrol engine with single pump |
11 Ton | 9 - 6,7 | 5 - 60 | 4,7 | 181 |
|
23.113 PTO 540 rpm for tractor with single pump |
11 Ton | 17 - 12,5 | 5 - 60 | 10 | 155 |
|
23.114 KOMBI (EL 230 V + PTO)
|
11 Ton |
3 - 2,2/ 17 - 12,5 |
5 - 60 | 7,9 / 10 | 209 |
|
25.115 KOMBI (EL 400 V + PTO) |
11 Ton |
5,5 - 4 / 17 - 12,5 |
5 - 60 | 7,2 / 10 | 212 |
| NB: Some data might not correspond to the catalogue and price list in force. | |||||
