LENGHT OF THE BELT4,40 MTCOMPLETELY OPEN |
 |
LOAD HEIGHT3,10 MT |

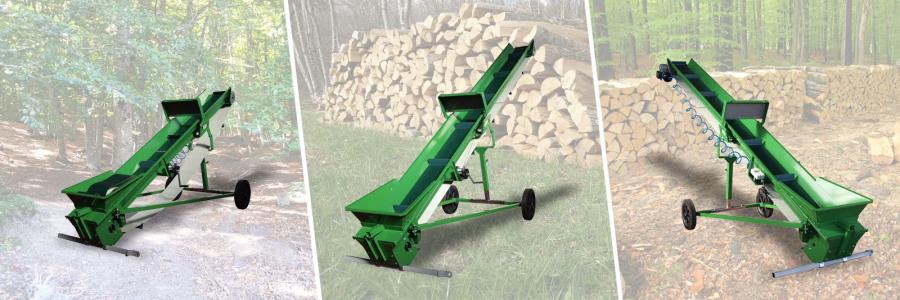

Rotary conveyor belts with trolley for handling.
Very useful and essential for many operations.
Belt internal width 25 cm (other dimensions upon request).
Belt towing from above for a better entrainment, without risk of slipping.
Features |
|---|
Sturdy frames in pressed, high-resistance metal sheet |
Powder painted and coated with zinc. |
Telescopic extraction for an easier transport and storage. |
PVC band with vulcanized blades. |
PVC carpet and steel blades (upon request). |
Full transport wheels and simple pulling shaft. |
Endless screw adaptor in bronze. Orbital hydraulic engines. |
Available versions |
|
|---|---|
EL 230 Volt 0,75 kW |
|
EL 400 Volt 0,75 kW |
|
HV with hydraulic engine |
Accessories Find out which accessories fit on the different Nastro Porta-Tutto models
 |
 |
Full wheel set |
Speed adjuster for HV conveyor belt |
| Model | Belt width (cm) | Vulcanized PVC blades, 6 cm. h (no. of blades) | Wheels for short movements (dia. mm) full | Total weight (kg) |
|---|---|---|---|---|
| TTC.025.5.231 EL 230 Volt |
25 | 13 | 2x400 | 234 |
| TTC.025.5.381 EL 400 Volt |
25 | 13 | 2x400 | 234 |
| TTC.025.5.HV HV with hydraulic connections |
25 | 13 | 2x400 | 230 |
