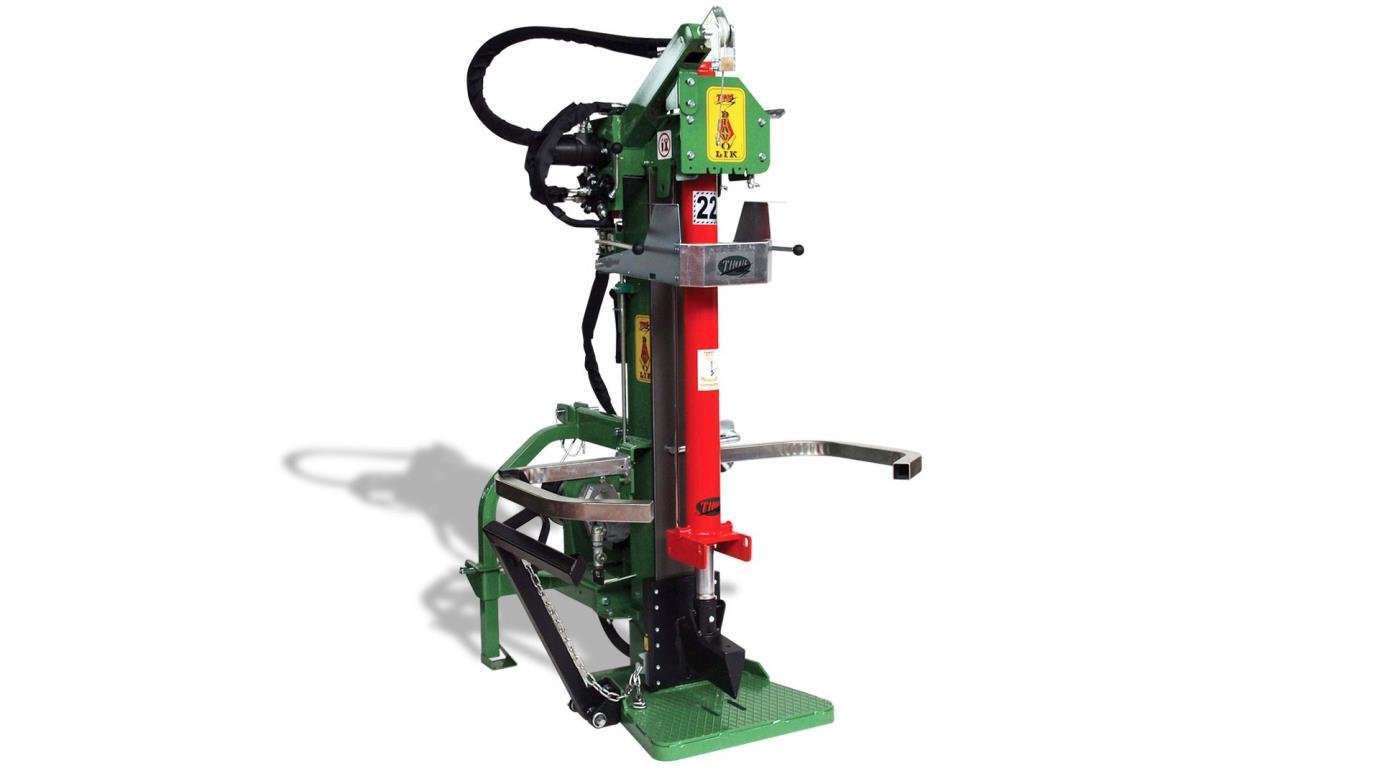

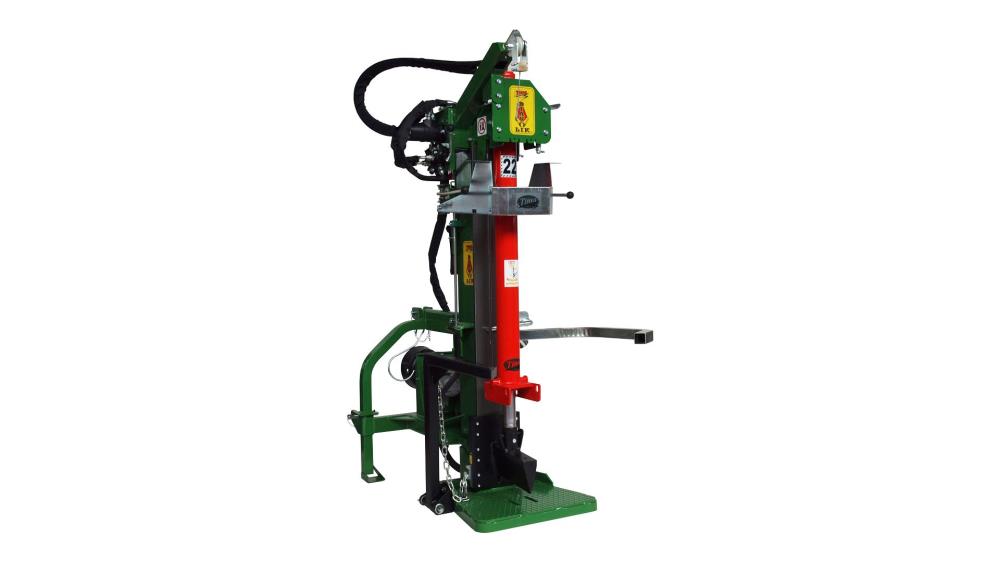

SPLITTING HEIGHT124 CM |
 |
SPLITTING FORCE22-25-30 TONAT CHOICE |
A cheap, simple and reliable choice!
They are extremely stable, sturdy, practical and operational!
They are manufactured and distributed in a variety of version to choose from with different applications and solutions for different accessories and options.
Features |
|---|

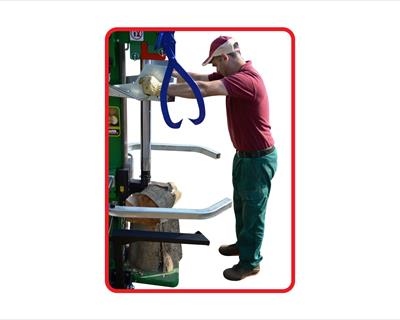

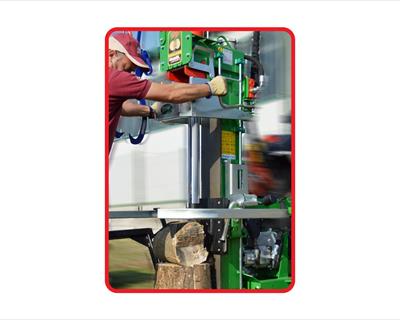

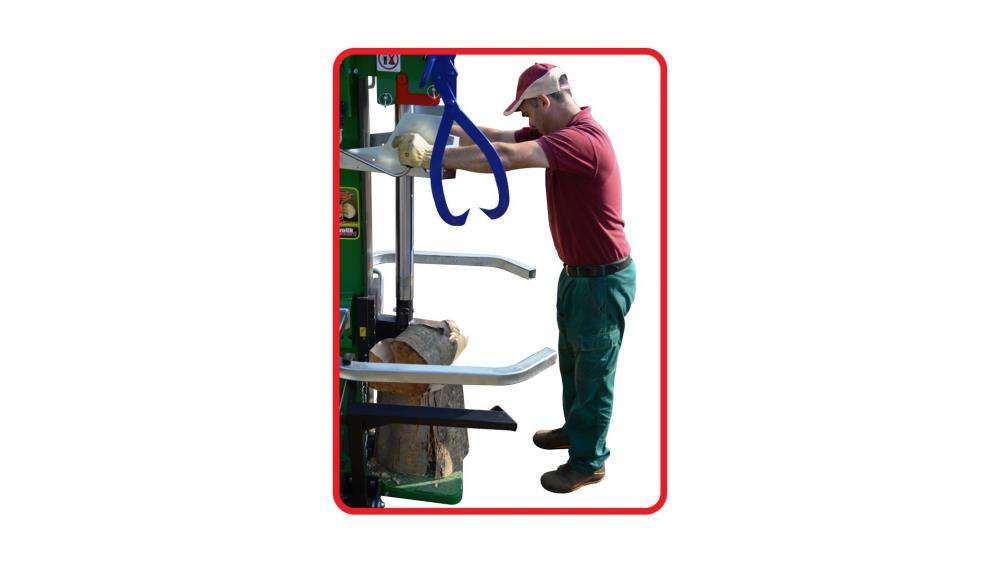

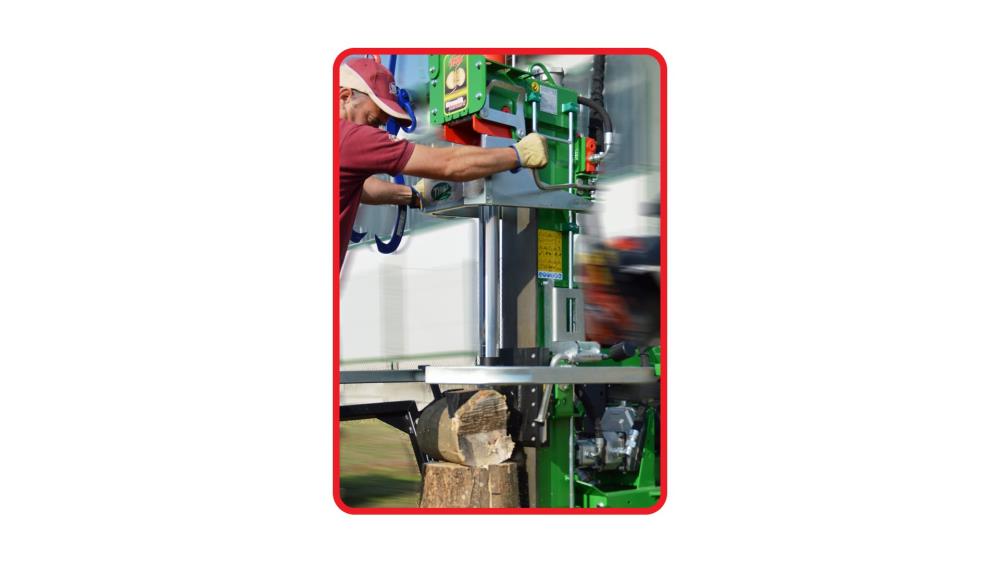

Standard dual control levers. |

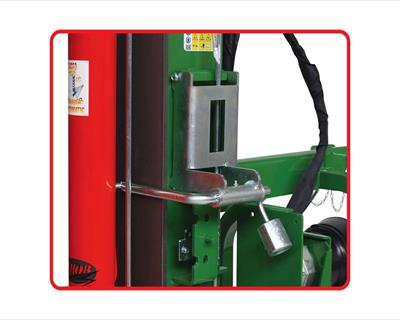

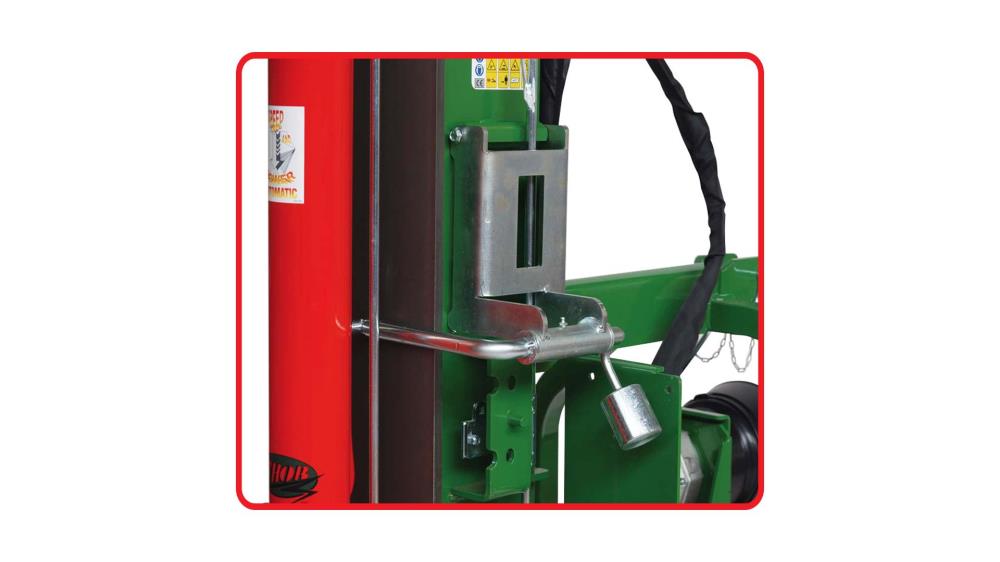

The log centering occurs through a rotating log centering pendulum. |
The double cutting speed "SPEEDandPOWER AUTOMATIC" considerably increases the working speed. |
They can split logs of very big dimensions up to a diameter of 130 cm with outstanding ease and speed. |
High strength cast iron guides with greasers, easily interchangeable. |

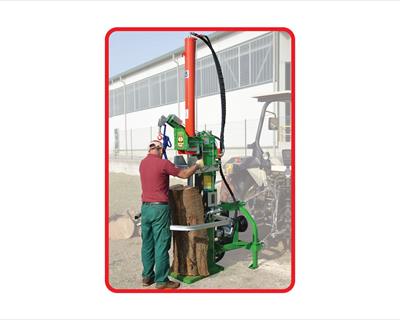

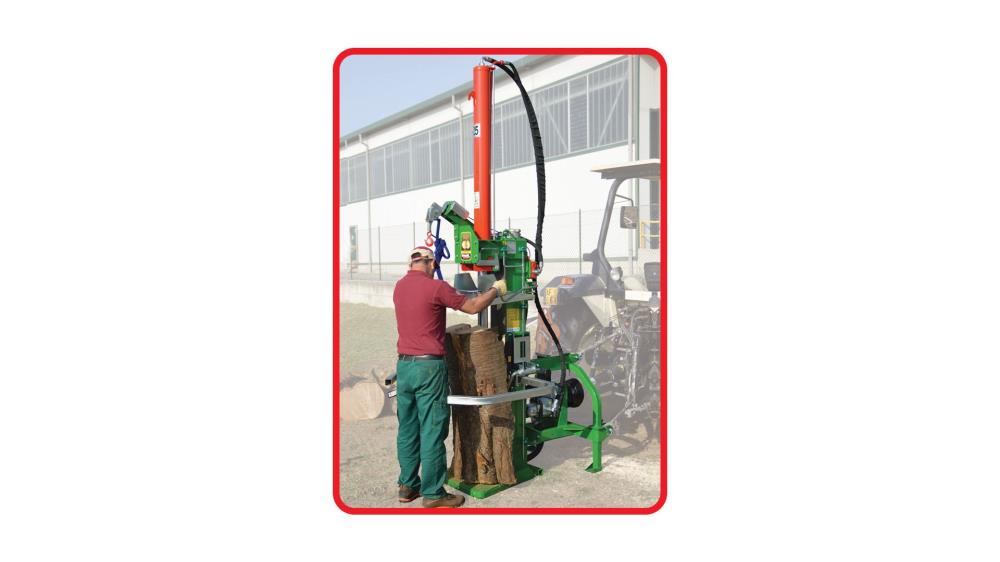

Moving and placing occur through the 3-point connector 1st - 2nd cat., or through the lifting hook. |
Available versions |
|
|---|---|
V.PF for tractor with fixed PTO pump to use with shaft |
|
EL 400 Volt with double pump |
|
KOMBI EL+PTO (combined power supply) |
"Not Reverse Winch" THOR patent
End customers and dealers can assemble it very easily! Also on already-operating models!
-
Hydraulic power supply from already available V.PF or HVP system.
-
Manual control valve with automatic cable exit.
-
Cable lenght 20 m with hook included.
-
Pulling strenght of 400 kg (can be increased).
-
Pulley rotating to 180° included.
-
Compact, aesthetic, easy and handy.
Accessories Find out which accessories fit on the different Farmer Diavolik models
 |
 |
 |
 |
Lifting hook |
Table for cutting 50 cm with lateral extention
|
Hour counter
|
Cardan shaft |
 |
 |
|
 |
 |
Chainsaw holder |
Manually controlled
|
Remote controlled
|
Timber tong |
Pulley to pull
|
| Model | Splitting force | Power required Hp - kW |
Splitting dia. capacity cm min - max |
Splitting speed cm/sec |
Total weight (kg) |
|---|---|---|---|---|---|
| 47.100 V.PF with fixed PTO pump for tractors |
22 Ton | 40 - 30 | 10 - 124 | 19 - 8,5 | 602 |
| 47.101 EL 400 Volt with double pump |
20 Ton | 7,5 - 5,5 | 10 - 124 | 27 - 12 | 562 |
| 47.102 KOMBI (EL 400 Volt + PTO) |
20 Ton | 7,5-5,5 / 40-30 | 10 - 124 | 27-12 / 19-8,5 | 642 |
| 45.100 V.PF with fixed PTO pump for tractors |
25 Ton | 46 - 34 | 10 - 124 | 20,2 - 9,4 | 632 |
| 45.101 V.PF with fixed PTO pump for tractors |
30 Ton | 50 - 37 | 10 - 124 | 20,2 - 9,4 | 682 |
| 45.102 EL 400 Volt with double pump |
30 Ton | 7,5 - 5,5 | 10 - 124 | 19 - 8,5 | 687 |
| 45.103 KOMBI (EL 400 Volt + PTO) |
30 Ton | 7,5-5,5 / 50-37 | 10 - 124 | 19-8,5 / 20,2-9,4 | 712 |
| Note 1: The splitting speeds are measured by using a fixed PTO pump at 540 rpm. Note 2: Some data might not correspond to the catalogue and price list in force. |
|||||
