SPLITTING HEIGHT54/67/105 CMADJUSTABLE |
 |
SPLITTING FORCE11 TON |
 |
SPLITTING DIAMETER60 CM |
Powerful, safe and persistent! A choice of quality and prestige.

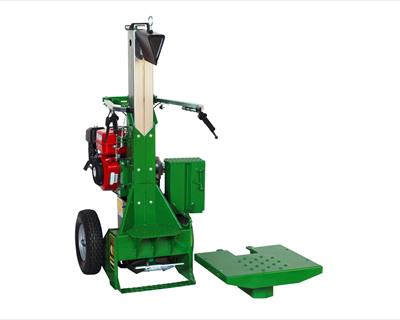

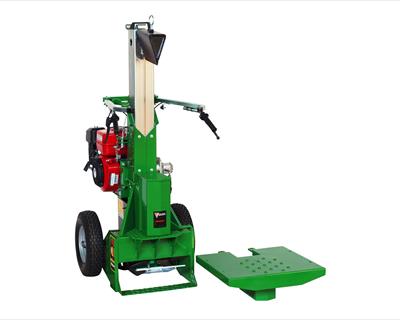

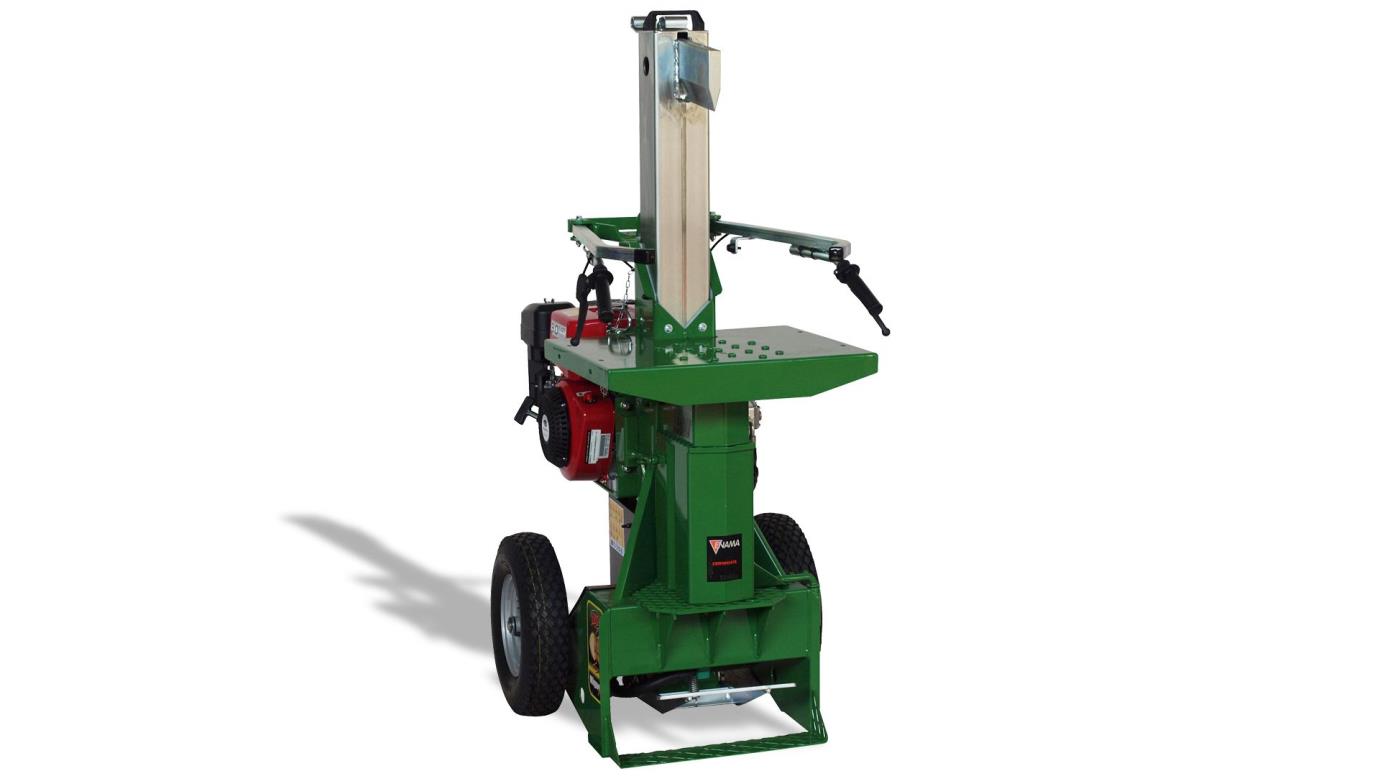

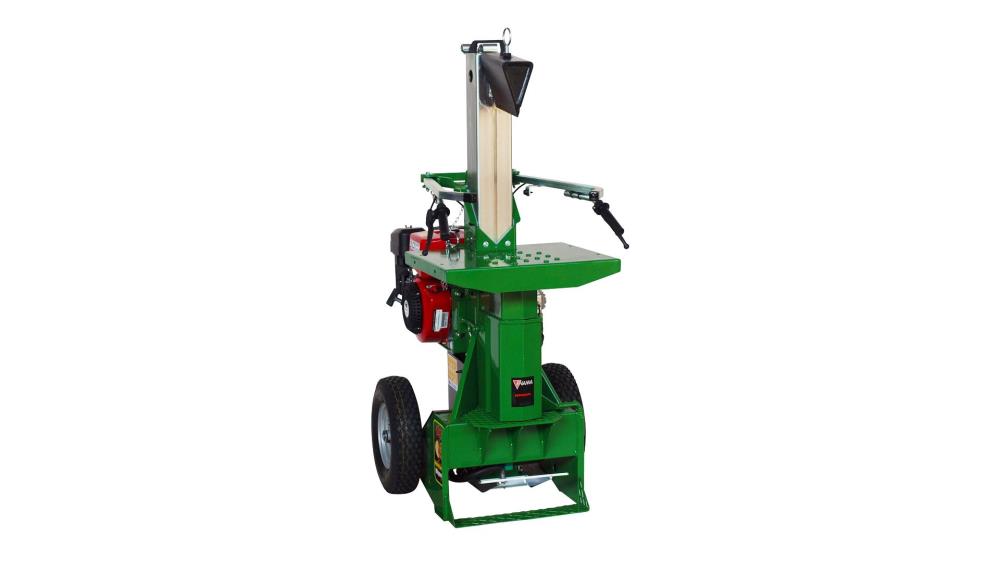

Hydraulic log splitter with vertical working position. With exclusive centering control by pedal!
They split very big and difficult logs with outstanding ease.
Their power has no rivals!
Features |
|---|
The commands are of the “System-LEADER” type. Exclusive log centering control with pedal. |
The splitting stroke is adjustable between 2 and 50 cm. |
Three working heights, 54 / 67 / 105 cm, can be adjusted by using the tables. |
The cutter guides are made of long lasting ertalon. |
They are very easy to use and move. |
The transport wheels are: 20 cm dia. full-wheels on the HVP and Kombi version. 40 cm dia. pneumatic on the EL and petrol engine version. |
Available versions |
|
|---|---|

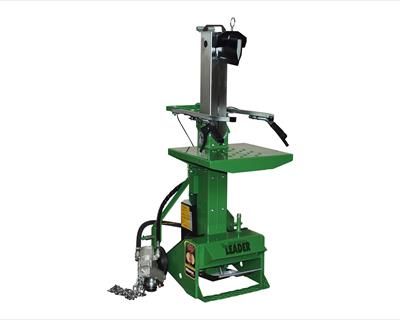

HVP PTO 540 rpm for tractor with single pump |
|

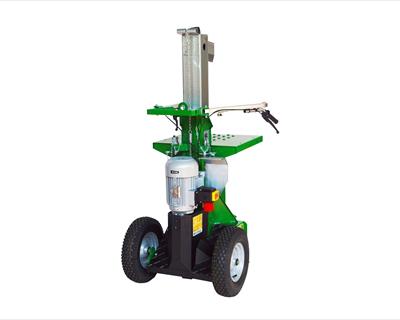

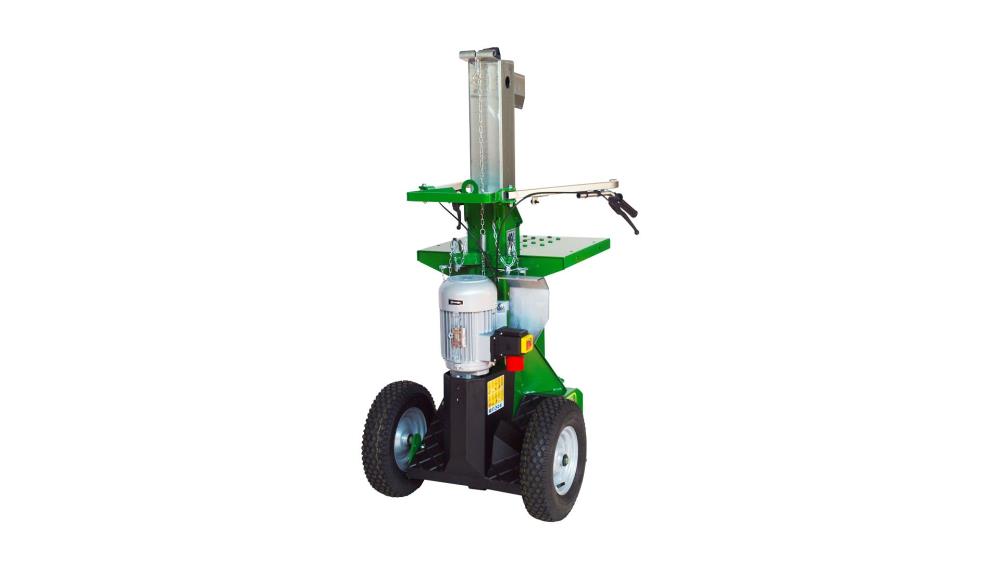

EL 230 Volt with double pump |
|
EL 400 Volt with single pump |
|
EL 110 Volt 60 hz engines (upon request) |
|

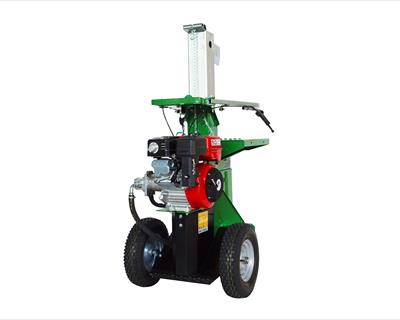

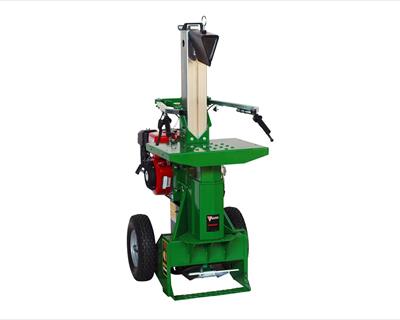

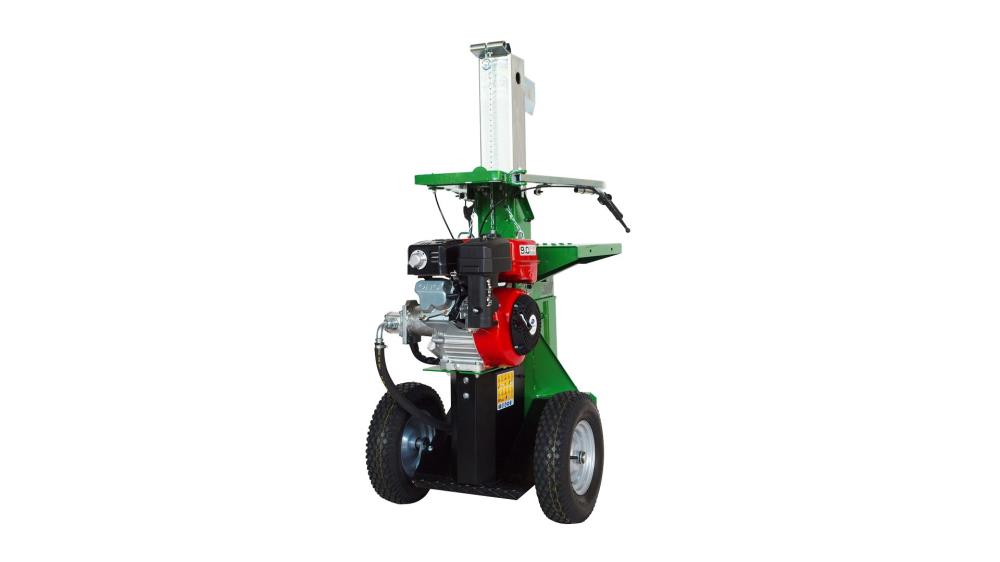

VS petrol engine with single pump |
|
KOMBI EL+PTO (Combined power supply) |
Accessories Find out which accessories fit on the different Mignon Prof models.
 |
 |
 |
 |
60° Cutter |
Cross cutter |
Side extensions |
Lifting hook |
| Model | Splitting force | Power required Hp - kW |
Splitting dia. capacity cm min - max |
Splitting speed cm/sec |
Total weight (kg) |
|---|---|---|---|---|---|
| 23.223.PD EL 230 Volt with double pump |
11 Ton | 3 - 2,2 | 5 - 60 | 7,9 | 166 |
| 23.386 EL 400 Volt with single pump |
11 Ton | 5,5 - 4 | 5 - 60 | 7,2 | 166 |
| 23.VS.10 VS petrol motor with single pump |
11 Ton | 9 - 6,7 | 5 - 60 | 4,7 | 195 |
| 23.HVP PTO 540 rpm for tractor with single pump |
11 Ton | 17 - 12,5 | 5 - 60 | 10 | 168 |
| 23.223.PD.K KOMBI (EL 230 V + PTO) |
11 Ton | 3-2,2 / 17-12,5 | 5 - 60 | 7,9 / 10 | 195 |
| 23.386.K KOMBI (EL 400 V + PTO) |
11 Ton | 5,5-4 / 17-12,5 | 5 - 60 | 7,2 / 10 | 198 |
| NB: Some data might not correspond to the catalogue and price list in force. | |||||
