SPLITTING HEIGHT124 CMADJUSTABLE |
 |
SPLITTING FORCE13-18-20 TONAT CHOICE |
A sure and innovative choice looking to the future!

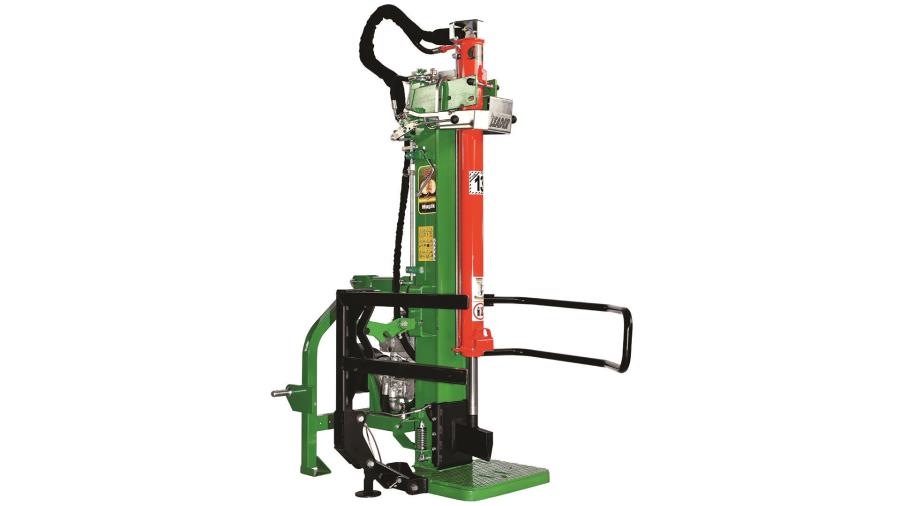

Hydraulic log splitter for agricultural-forestry use, vertical working position.
They are compact, linear, handy, powerful and matchless!
They are manufactured and distributed in a variety of versions to choose from with different applications and solutions for different accessories and options.
Features |
|---|
The commands are of the “System-LEADER” type. Exclusive log centering control with one lever or with the pedal. |
Splitting height of 124 cm, adjustable. |
The double cutting speed "SPEEDandPOWER" considerably increase the working speed. |
Self-lubricating guides in Teflon and Ertalon, easily interchangeable. |
Moving and placing occur through the 3-point connector 1st - 2nd cat., or through pneumatic wheels with diameters of 40 and 50 cm, and a handle. Otherwise using the lifting hook. |
Technical differences compared to the previous model |
New broader base for log support |
New splitting height adjustment. Now without chain |
New shape of the side protection arm mounted on the right side |
New shape of the side hoist, mounted on the left side |
Side hoist and protection arm re-closable at the end of the work |
Available versions |
|
|---|---|
HV with hydraulic connections for tractor |
|
V.PF for tractor with fixed pump |
|
EL 230 Volt with double pump |
|
EL 400 Volt with single pump |
|
EL 110 Volt 60 Hz engines or diesel engines (upon request) |
|
VS petrol engine with double pump |
|
KOMBI EL+PTO (combined power supply) |
"Not Reverse Winch" THOR patent
End customers and dealers can assemble it very easily! Also on already-operating models!
-
Hydraulic power supply from already available V.PF or HVP system.
-
Manual control valve with automatic cable exit.
-
Cable lenght 20 m with hook included.
-
Pulling strenght of 250 kg (can be increased).
-
Pulley rotating to 180° included.
-
Compact, aesthetic, easy and handy.
Accessories Find out which accessories fit on the different Magik models
 |
 |
|
 |
60° Cutter (13 Ton) |
Lifting hook |
Table for cutting 50 cm with lateral extention,
|
Transport trolley with
|
 |
 |
 |
 |
 |
Cardan shaft |
Chainsaw holder |
Winch with
|
Timber tong |
Pulley to pull
|
| Model | Splitting force | Power required Hp - kW | Splitting dia. capacity cm min - max | Splitting speed cm/sec | Total weight (kg) |
|---|---|---|---|---|---|
| 34.101 V.PF with fixed PTO pump for tractors |
13 Ton | 22 - 16 | 5 - 70 | 10,5 - 34 | 380 |
| 34.102 EL 230 Volt with double pump |
13 Ton | 3 - 2,2 | 5 - 70 | 6,7 - 21,4 | 382 |
| 34.103 EL 400 Volt with single pump |
13 Ton | 5,5 - 4 | 5 - 70 | 6,1 - 19,5 | 382 |
| 34.105 KOMBI (EL 230 V + PTO) |
13 Ton | 3-2,2 / 22-16 | 5 - 70 | 6,7-21,4 / 7,5-24 | 408 |
| 34.106 KOMBI (EL 400 V + PTO) |
13 Ton | 5,5-4 / 22-16 | 5 - 70 | 6,1-19,5 / 7,5-24 | 408 |
| 34.104 VS petrol with double pump |
13 Ton | 9 - 6,7 | 5 - 70 | 8 - 25 | 392 |
| 36.100 HV with hydraulic connections for tractor |
18 Ton | ? - ? | 5 - 90 | ? - ? | 269 |
| 36.101 V.PF with fixed PTO pump for tractors |
18 Ton | 24 - 18 | 5 - 90 | 8,5 - 19 | 414 |
| 36.102 EL 400 Volt with double pump |
18 Ton | 7,5 - 5,5 | 5 - 90 | 7 - 15,7 | 422 |
| 36.103 KOMBI (EL 400 V + PTO) |
18 Ton | 7,5-5,5 / 24-18 | 5 - 90 | 7-15,7 / 8,5-19 | 467 |
| 36.110 V.PF with fixed PTO pump for tractors |
20 Ton | 27 - 20 | 5 - 90 | 8,5 - 19 | 447 |
| Note 1: The splitting speeds are measured by using a fixed PTO pump at 500 rpm. Note 2: Some data might not correspond to the catalogue and price list in force. |
|||||
