SPLITTING HEIGHT104 CM |
 |
SPLITTING FORCE13-15-18 TONAT CHOICE |

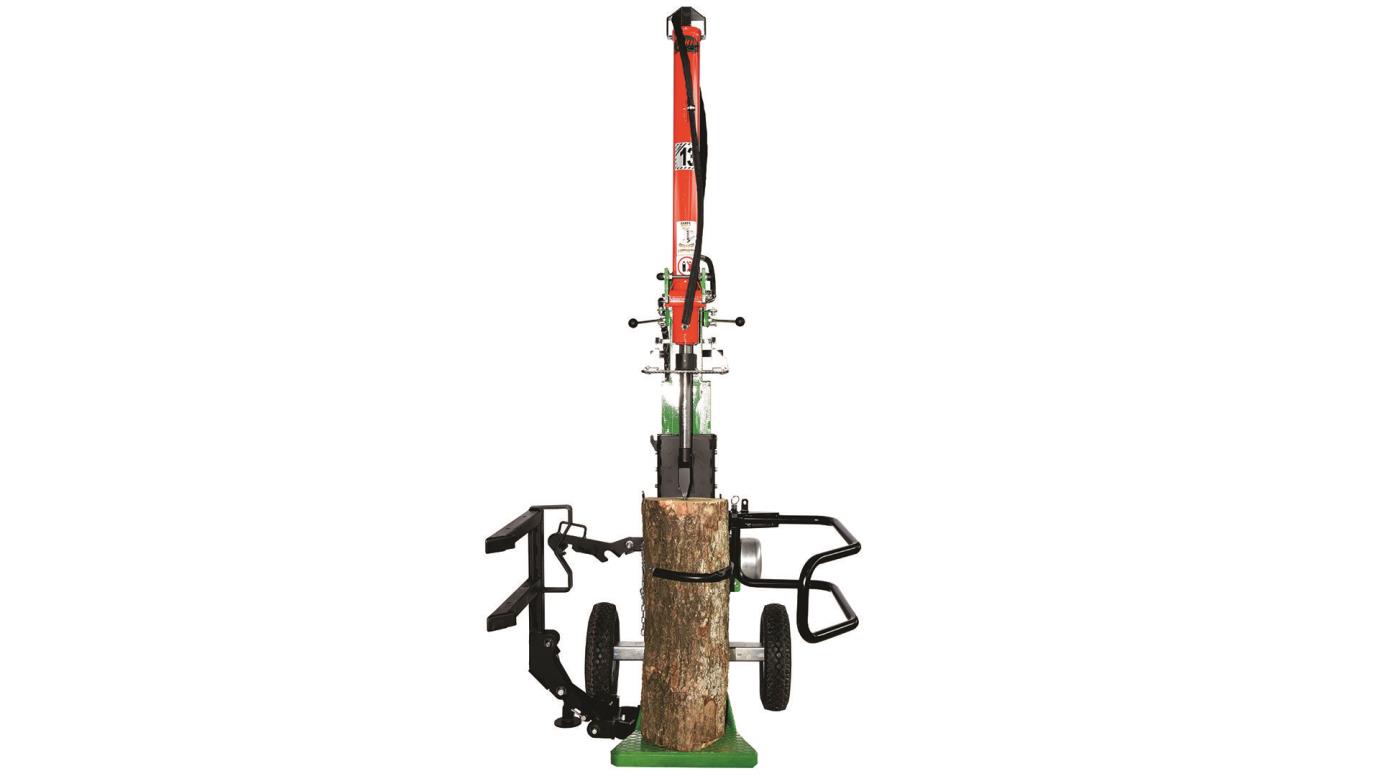

A cheap, simple and reliable choice!
They are simple and sturdy!
They are manufactured and distributed in a variety of version to choose from with different applications and solutions for different accessories and options.
Features |
|---|
Standard dual control levers. |
The centering of the log to split occurs through a bit welded onto the cutter guide. |
The double splitting speed "SPEEDandPOWER" considerably increases the working speed. |
They split difficult logs of big dimensions up to about 80 cm dia. |
The cutter guides are in Teflon and Ertalon, self-lubricating and easily interchangeable. |
Handling and positioning operations are carried out with the 3-point connector 1st – 2nd cat. , by using pneumatic wheels with a diameter of 40 cm and a handle, Otherwise using the lifting hook. |
Technical differences compared to the previous model |
New broader base for log support |
New shape of the side protection arm mounted on the right side |
New shape of the side hoist, mounted on the left side |
Hoist and side protection arms re-closable at the end of the work |
Log centering device (Patented device!) |
Available versions |
|
|---|---|
HV for tractor with hydraulic connections |
|
HVP for tractor with detached and flexible PTO pump |
|
V.PF for tractor with fixed PTO pump to use with shaft |
|
EL 230 Volt with double pump |
|
EL 400 Volt with single pump |
|
EL 60 Hz engines (upon request) |
|
KOMBI EL+PTO (combined power supply) |
"Not Reverse Winch" THOR patent
End customers and dealers can assemble it very easily! Also on already-operating models!
-
Hydraulic power supply from already available V.PF or HVP system.
-
Manual control valve with automatic cable exit.
-
Cable lenght 20 m with hook included.
-
Pulling strenght of 250 kg (can be increased).
-
Pulley rotating to 180° included.
-
Compact, aesthetic, easy and handy.
Accessories Find out which accessories fit on the different Farmer models
 |
 |
 |
 |
60° Cutter (13 Ton) |
Lifting hook |
Chainsaw holder |
Transport trolley
|
 |
 |
 |
 |
Cardan shaft |
Manually controlled
|
Timber tong |
Pulley to pull
|
| Model | Splitting force | Power required Hp - kW |
Splitting dia. capacity cm min - max | Splitting speed cm/sec | Total weight (kg) |
|---|---|---|---|---|---|
| 37.100 HV for tractor with hydraulic connections |
13 Ton | ? - ? | 10 - 90 | ? - ? | 264 |
| 37.101 HVP for tractor with detached and flexible pump |
13 Ton | 23 - 17 | 10 - 90 | 10,7 - 34 | 297 |
| 37.102 V.PF with fixed PTO pump for tractors |
13 Ton | 23 - 17 | 10 - 90 | 10,7 - 34 | 325 |
| 37.103 EL 230 Volt with double pump |
13 Ton | 3 - 2,2 | 10 - 90 | 6,7 - 21,4 | 342 |
| 37.104 EL 400 Volt with single pump |
13 Ton | 5,5 - 4 | 10 - 90 | 6,1 - 19,5 | 342 |
| 37.105 KOMBI (EL 230 Volt + PTO) |
13 Ton | 3-2,2 / 23-17 | 10 - 90 | 6,7-21,4 / 10,7-34 | 337 |
| 37.106 KOMBI (EL 400 Volt + PTO) |
13 Ton | 5,5-3 / 23-17 | 10 - 90 | 6,1-19,5 / 10,7-34 | 337 |
| 39.100 HV for tractor with hydraulic connections |
13 Ton | ? - ? | 10 - 90 | ? - ? | 272 |
| 39.101 HVP for tractor with detached and flexible pump |
15 Ton | 25 - 18 | 10 - 90 | 8,5 - 19,1 | 307 |
| 39.102 V.PF with fixed PTO pump for tractors |
15 Ton | 23 - 17 | 10 - 90 | 8,5 - 19,1 | 327 |
| 39.110 V.PF with fixed PTO pump for tractors |
18 Ton | 25 - 18 | 10 - 90 | 8,5 - 19,1 | 412 |
| Note 1: The splitting speeds are measured by using the fixed PTO pump at 500 rpm. Note 2: Some data might not correspond to the catalogue and price list in force. |
|||||
