BLADE DIAMETER750 MMSTEEL OR WIDIA AT CHOICE |

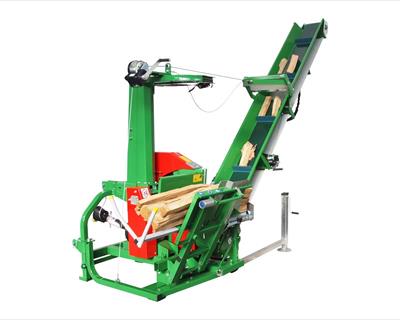

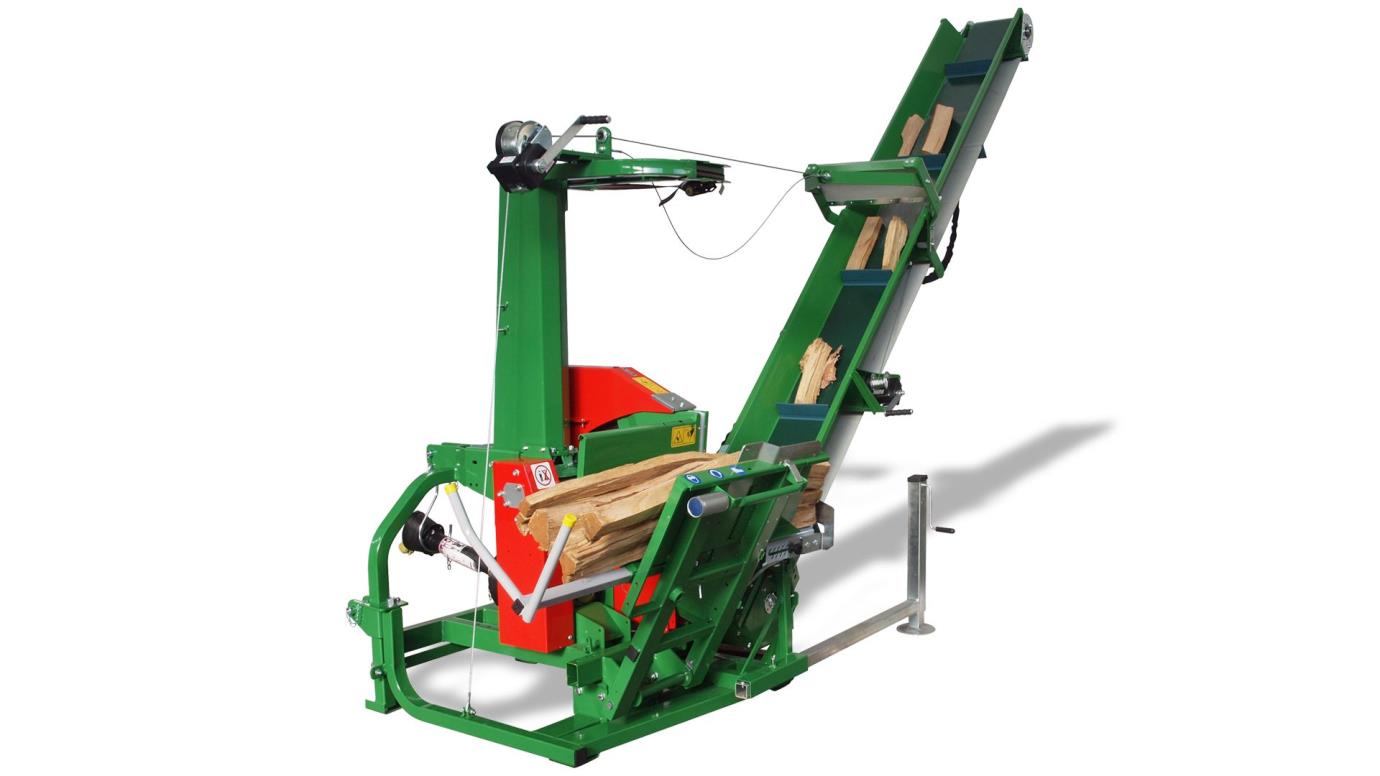

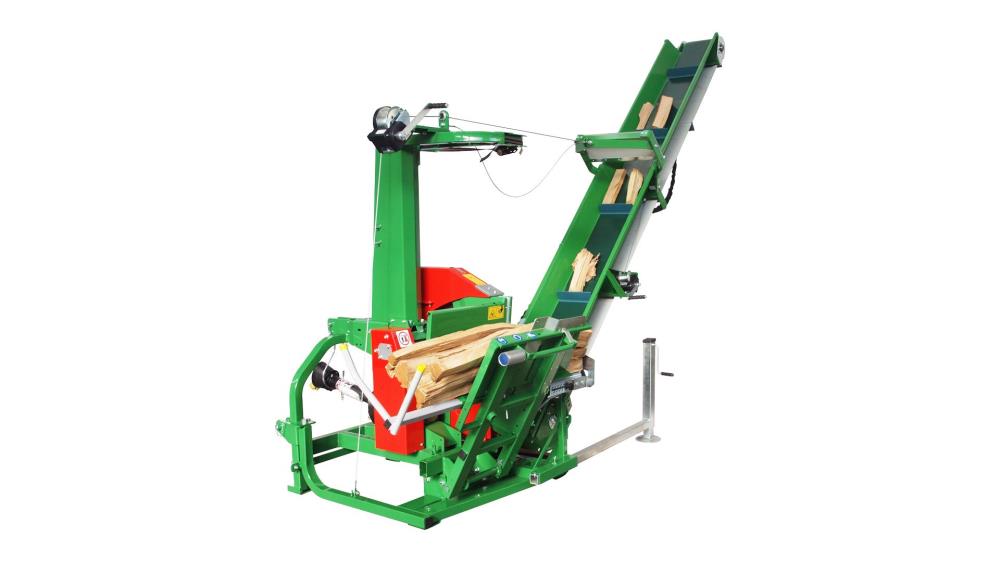

Saw benches with conveyor belt for industry and agriculture!

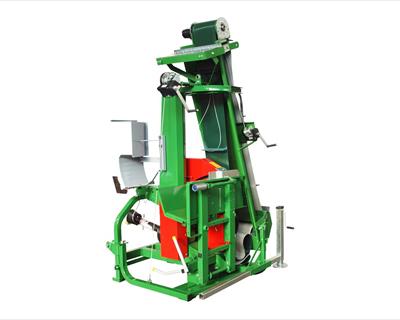

Telescopic conveyor belt retractable to 2.45 m. max. of height.
The anchor fulcrum of the tilting trestle is fixed onto unbreakable self-lubricating DU bushings.
The blade is protected laterally with Ertalon guides.
Features |
|---|
Conveyor belt with a length of 4 m when open with an inclination of 45°. Loads up to 2.40 m. |
Conveyor belt with a length of 5 m when open with an inclination of 45° (optional). Loads up to 3.10 m. |
Double-ply PVC mat, 25 cm wide, with vulcanized blades 6 cm high. |
Upper tow mat for better pull. |
PVC belt pulling from above with hydraulic motor. |
Hydraulic motor speed steady or adjustable (optional). |
Conveyor belt positioning and extraction with two manual winches. |
Cut adjustment and removable cut conveyor. |
Handling and positioning are guaranteed with the 3-point-connector 1st – 2nd cat. for all models, or with lifting hooks. |
Technical differences compared to the previous model |
Tilting bench's safety cover case. (Patented device!) |
Modifications on tilting bench and on saw blade covers |
Emergency blade braking device. (Patented device!) |
Available version |
|
|---|---|
V.PF PTO 540 rpm for saw blade + hydraulic connections for conveyor belt |
|
V.PF PTO 540 rpm for saw blade and conveyor belt |
|
EL 400 Volt engine for saw blade and conveyor belt |
|
EL 60 Hz engine (upon request) |
|
KOMBI EL 400 Volt engine + PTO 540 rpm for saw blade and conveyor belt |
|
VS petrol engine (upon request) |
Accessories Find out which accessories fit on the different Tandem 750 models
 |
|
 |
 |
Steel blade |
Widia blade |
Lifting hook |
Cardan shaft with
|
 |
 |
Price increase for
|
Roller |
| Model | Blade | Rpm | Power required Hp - kW |
Cutting diameter cm min - max |
Total weight (kg) |
|---|---|---|---|---|---|
| K 76.100 V.PF for saw bench + HV for conveyor belt 4 m. |
steel or widia dia. 750 |
1400 | 25 - 18 | 2 - 30 | 580 |
| K 76.101 V.PF for saw bench and conveyor belt 4 m. |
steel or widia dia. 750 |
1400 | 25 - 18 | 2 - 30 | 595 |
| K 76.103 EL 400 Volt for saw bench and conveyor belt 4 m. |
steel or widia dia. 750 |
1400 | 12 - 9 | 2 - 30 | 605 |
| K 76.104 KOMBI for saw bench and conveyor belt 4 m. |
steel or widia dia. 750 |
1400 | 7,5-5,5 / 25-18 | 2 - 30 | 645 |
| Note: Some data might not correspond to the catalogue and price list in force. | |||||
NOTE: some images may not correspond entirely to the machine in your possession.
