SPLITTING HEIGHT115 CMADJUSTABLE |
 |
SPLITTING FORCE16 TON |
The considered choice for working independently everywhere!
They are compact, powerful and reliable under all conditions.
They split difficult logs of big dimensions up to about 90 cm dia.

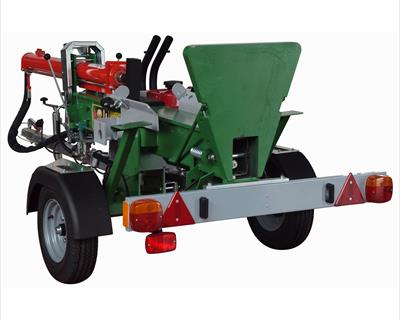

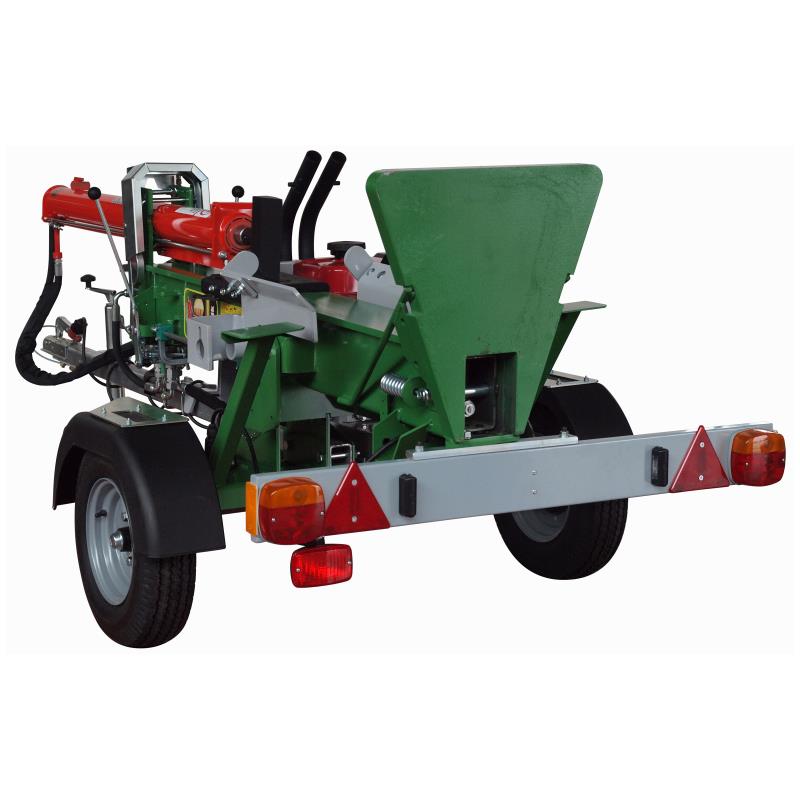

They are equipped with a tow hook for a 50 dia. sphere, lights and indicators for road transport, axle with elastic suspensions.
Features |
|---|
The commands are of the “System-LEADER” type. Exclusive log centering control with one lever or with the pedal. |

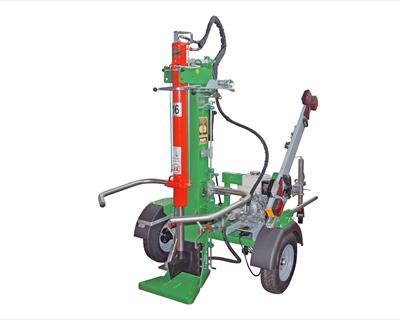

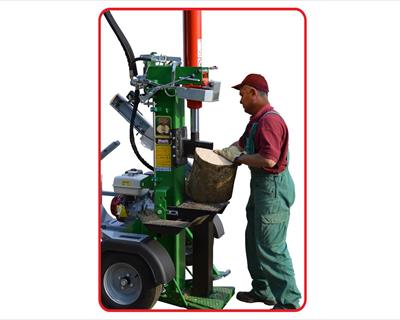

The log's centering is provided in vertical working position by the “System-LEADER” control type. |

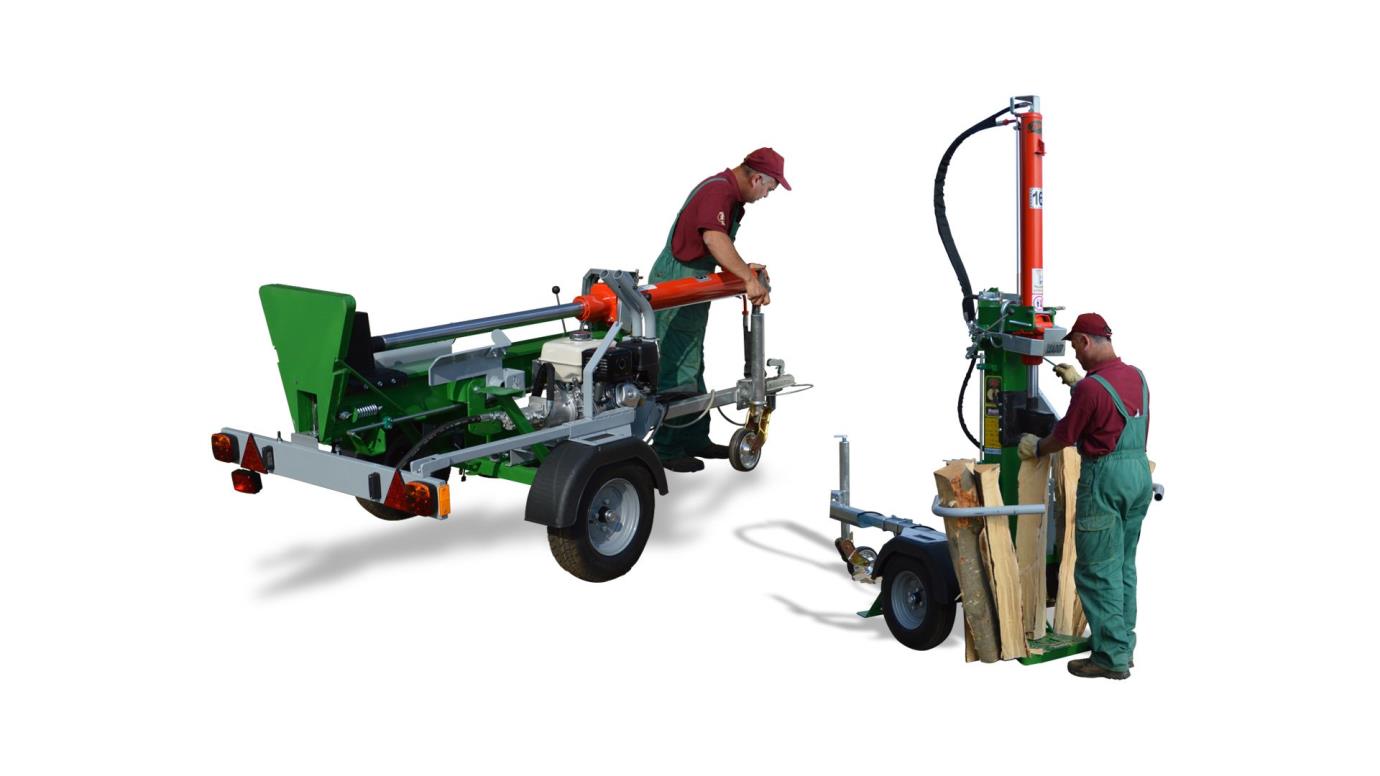

Handling occurs exclusively by towing in horizontal position. |
The double cutting speed "SPEEDandPOWER" is provided as standard and considerably increases the working speed. |
Max speed: 100 km/h. For the maximum speed please refer to the highway code of the countries in question. |
The cutter guides are in Teflon and Ertalon, self-lubricating and easily interchangeable (see video). |
Available versions |
|
|---|---|
EL 400 Volt with single pump |
|

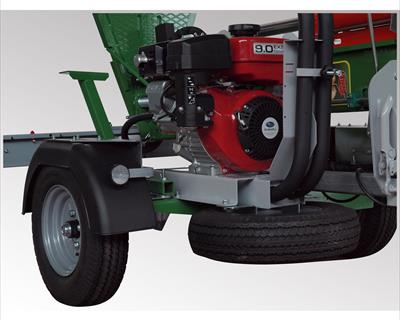

VS petrol engine with double pump |
|
VSD diesel engine with double pump (upon request) |
Accessories Find out which accessories fit on the different Magik Multiuse models
 |
 |
Lifting hook |
Spare tire |
| Model | Splitting force | Power required Hp - kW |
Splitting dia. capacity cm min - max |
Splitting speed cm/sec |
Total weight (kg) |
|---|---|---|---|---|---|
| 36.M.121 EL 400 Volt with single pump |
16 Ton | 5,5 - 4 | 10 - 90 | 6,1 - 13,5 | 480 |
| 36.M.120 VS petrol with double pump |
16 Ton | 9 - 6,7 | 10 - 90 | 6,3 - 14,1 | 490 |
| Note: Some data might not correspond to the catalogue and price list in force. | |||||
NOTE: some images may not correspond entirely to the machine in your possession.
