SPLITTING LENGHT65 - 105 CMIN TWO WORKING PHASES |
 |
SPLITTING FORCE12 TON |
 |
SPLITTING DIAMETER60-70 CMDEPENDING ON MODEL |

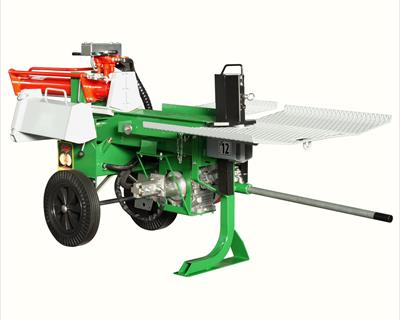

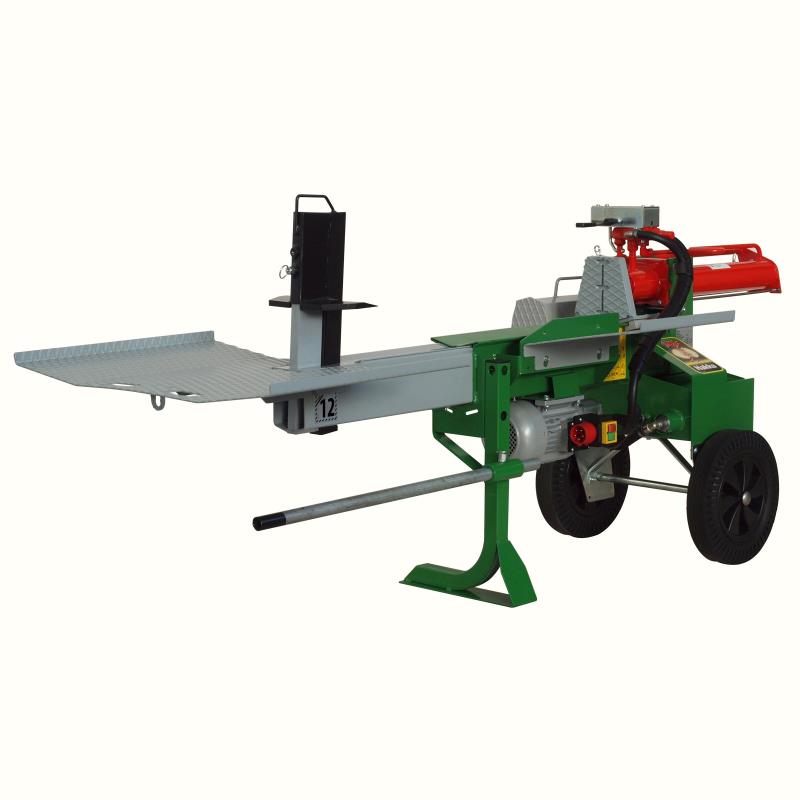

A refined choice for an horizontal splitter for private use!
Several horizontal models on wheels to move and position manually or (by request) trailed and approved for public roads with spherical tow hook 50 mm dia. and axle with elastic suspensions.
Ergonomic and optimally-positioned controls.

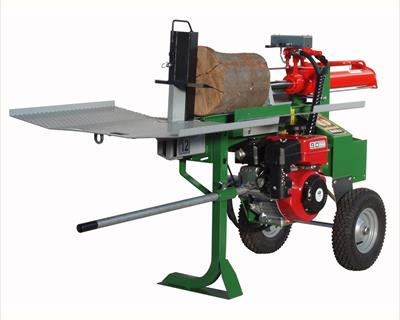

The placing of the log to be split is ensured by the central concave-molded shape of the frame.
Features |
|---|
Double levers control for splitting operations. |

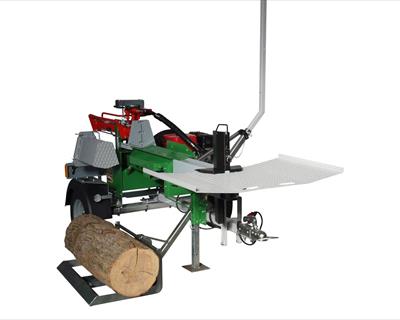

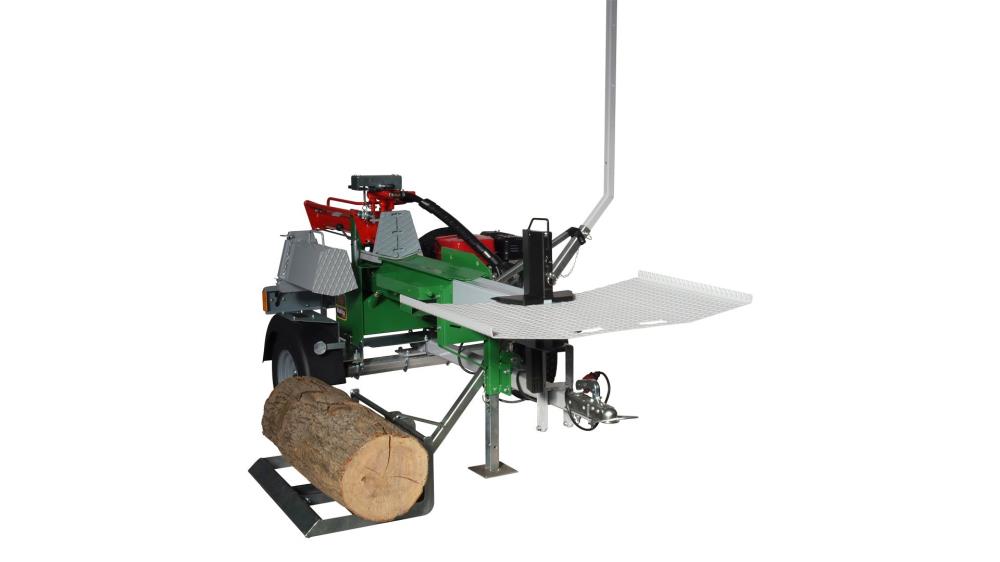

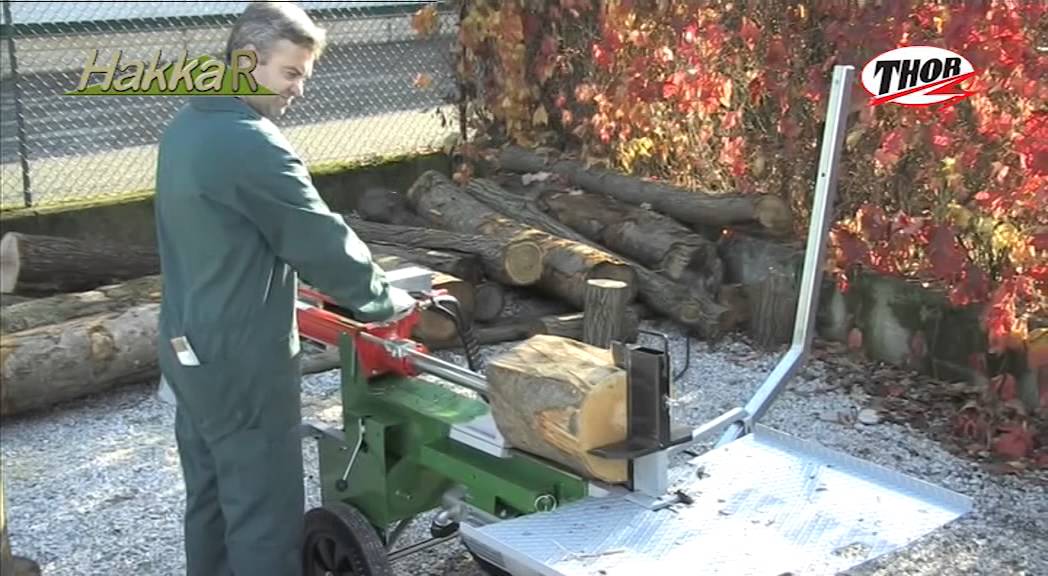

Manual side hoist is provided (as optional) to ease all the loading operations (see video). |
The double cutting speed "SPEEDandPOWER" considerably increases the working speed. |

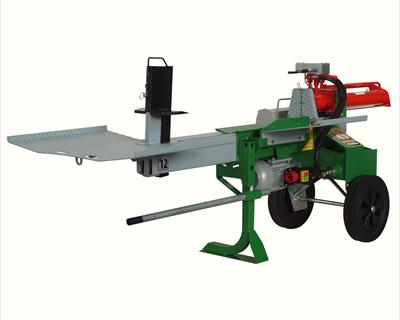

The rear extension for the log collection makes it easier to collect and pick up the split wood pieces. |
Standard and cross cutter is included. |
Max speed: 100 km/h. For the maximum speed please refer to the highway code of the countries in question. |

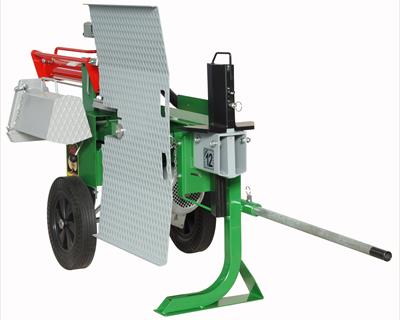

The hydraulic cylinder is retractable after work. |

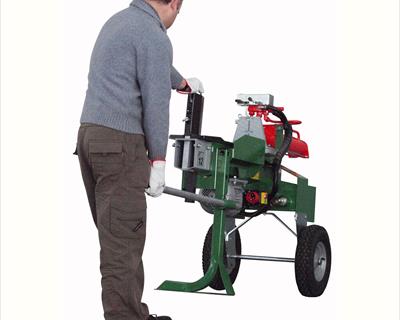

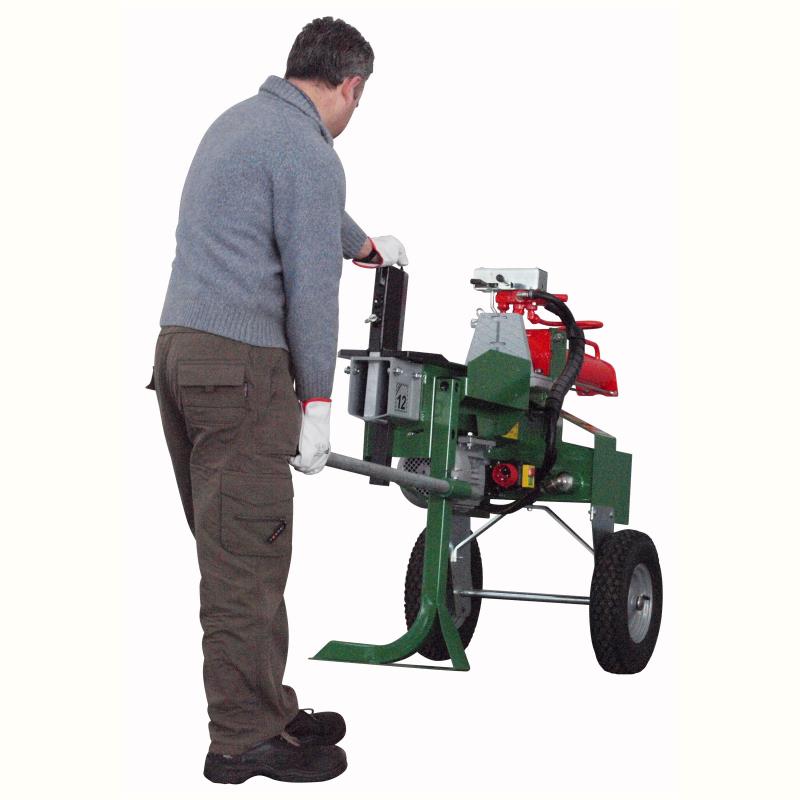

Handling and positioning operations are facilitated by using the handle. |
The transport wheels are 400 mm dia. full wheels (optional 400 mm dia. pneumatic wheels). |
The pusher plate and the side supports for splitting 1 m are included. |
The spare tire (optional) helps the user in an emergency on way. |
The high-strength guide rails are made of cast iron and are easily interchangeable. |
Available versions |
|
|---|---|

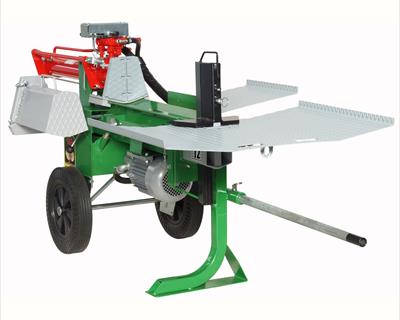

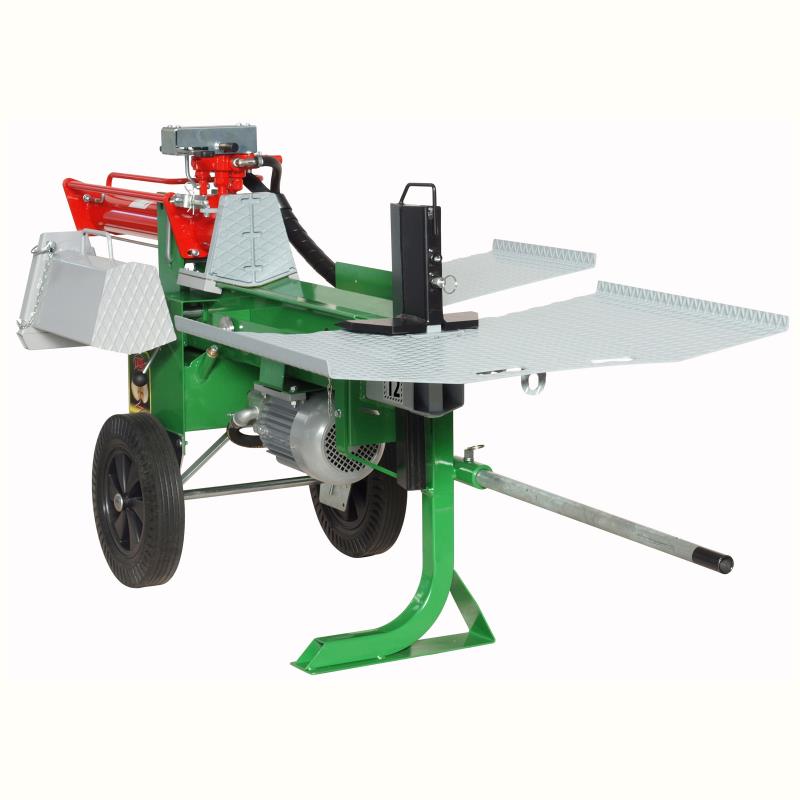

EL 230 Volt with double pump (not for road versions ) |
|
EL 400 Volt with single pump (not for road versions ) |
|
EL 110 Volt 60 Hz engine (upon request) |
|

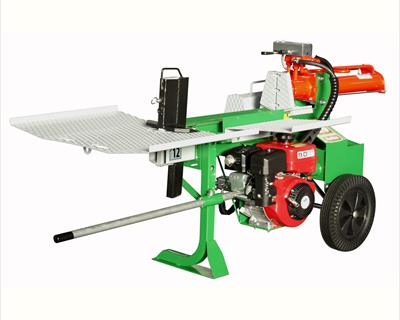

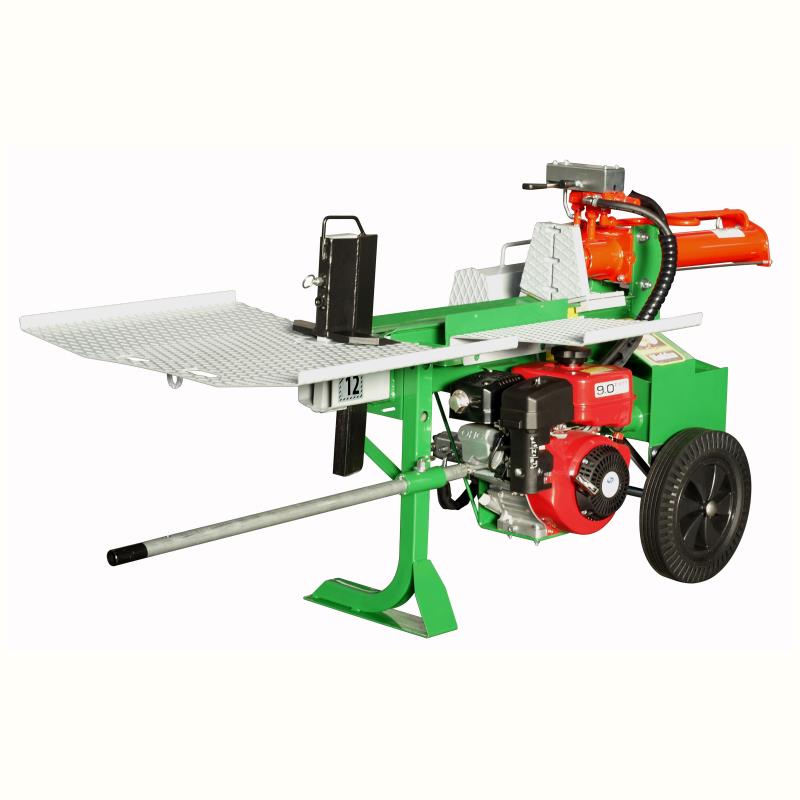

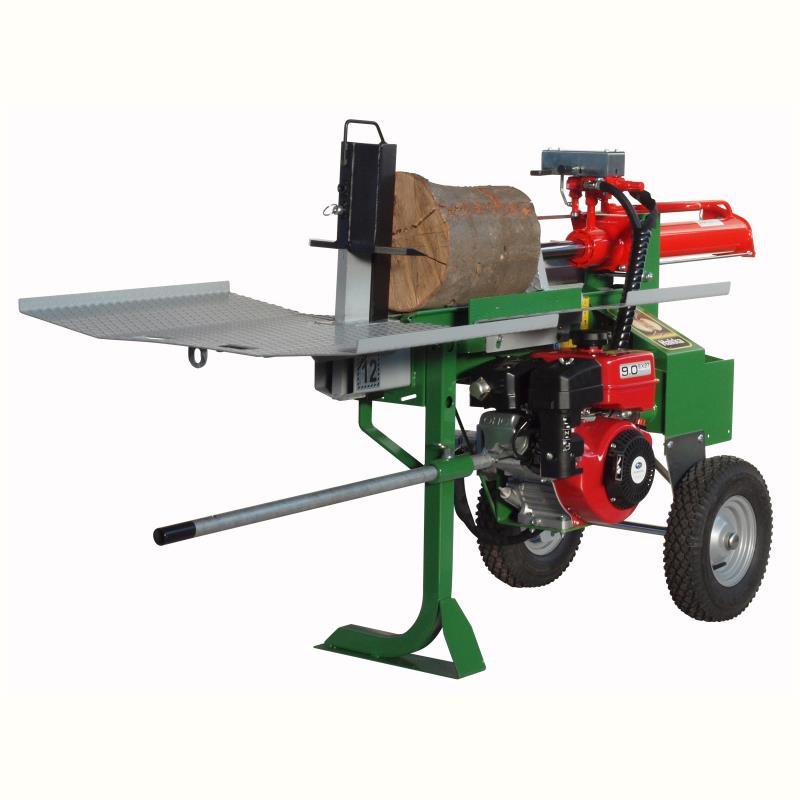

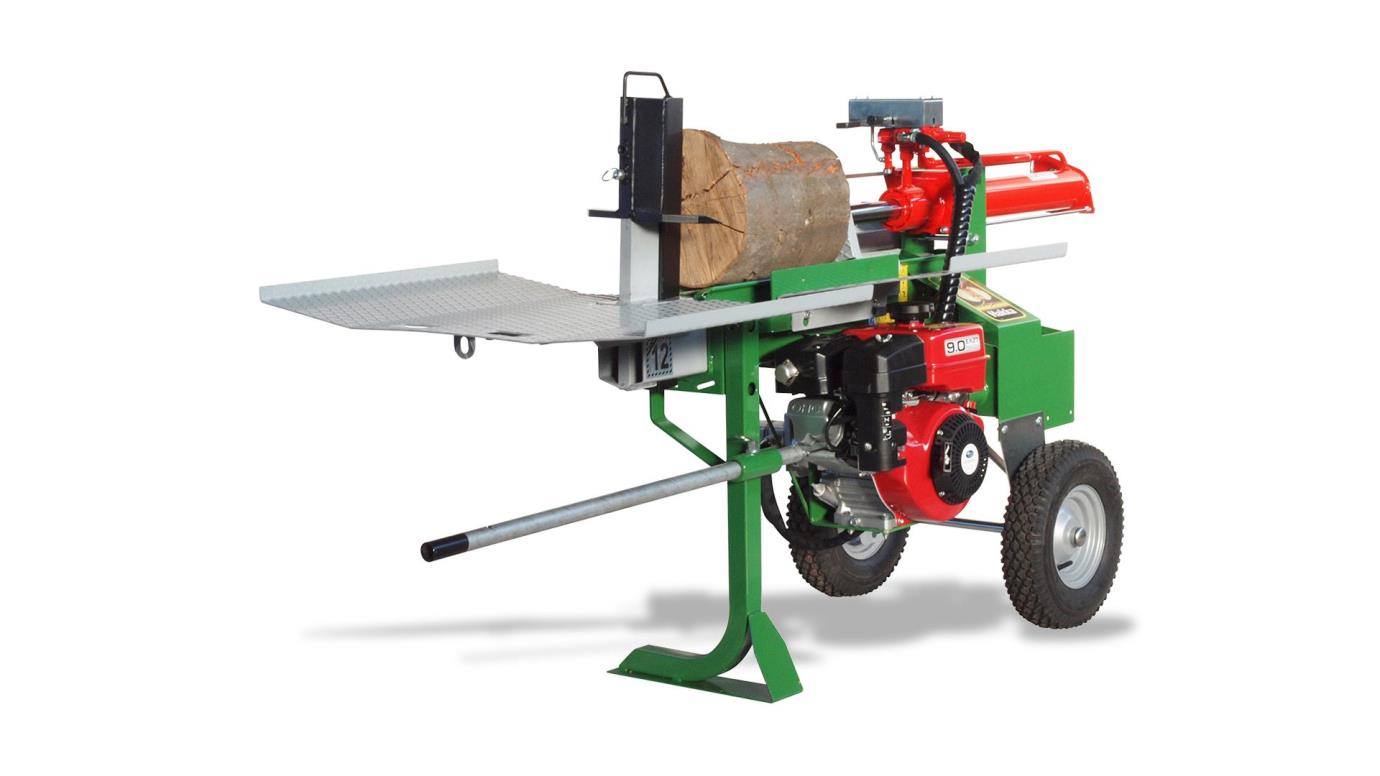

VS petrol engine with double pump |
Accessories Find out which accessories fit on the different Hakka models
 |
 |
 |
Lifting hook |
Pneumatic wheel set
|
Manual side hoist |
| Model | Splitting force | Power required Hp - kW |
Splitting dia. capacity cm min - max |
Splitting speed cm/sec |
Total weight (kg) |
|---|---|---|---|---|---|
| 13.60.223.PD EL 230 Volt with double pump |
12 Ton | 3 - 2,2 | 10 - 60 | 5,2 - 15,6 | 230 |
| 13.60.386 EL 400 Volt con single pump |
12 Ton | 5,5 - 4 | 10 - 60 | 6,1 - 19,5 | 230 |
| 13.60.VS.10.PD VS petrol with double pump |
12 Ton | 9 - 6,7 | 10 - 60 | 8 - 25 | 245 |
| 13R.60.223.PD EL 230 Volt with double pump ROAD |
12 Ton | 3 - 2,2 | 10 - 70 | 5,2 - 15,6 | 280 |
| 13R.60.386 EL 400 Volt with single pump ROAD |
12 Ton | 5,5 - 4 | 10 - 70 | 6,1 - 19,5 | 280 |
| 13R.60.VS.10.PD VS petrol with double pump ROAD |
12 Ton | 9 - 6,7 | 10 - 70 | 8 - 25 | 305 |
| Note: Some data might not correspond to the catalogue and price list in force. | |||||
