Alpino 6,5 - 8,5 Ton
max. splitting 105 cm (only for non-EU markets)

The commands are of the
Alpino 6,5 - 8,5 Ton <br> max. splitting 105 cm (only for non-EU markets)

Alpino 6,5 - 8,5 Ton
max. splitting 105 cm (only for non-EU markets)

The commands are of the

SPLITTING HEIGHT

54/67/105 CM

ADJUSTABLE
SPLITTING FORCE

6,5-8,5 TON

AT CHOICE
SPLITTING DIAMETER

50 CM

A considered choice for every family!

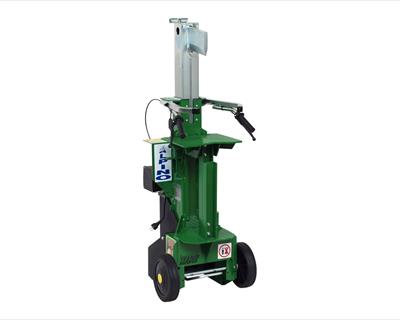

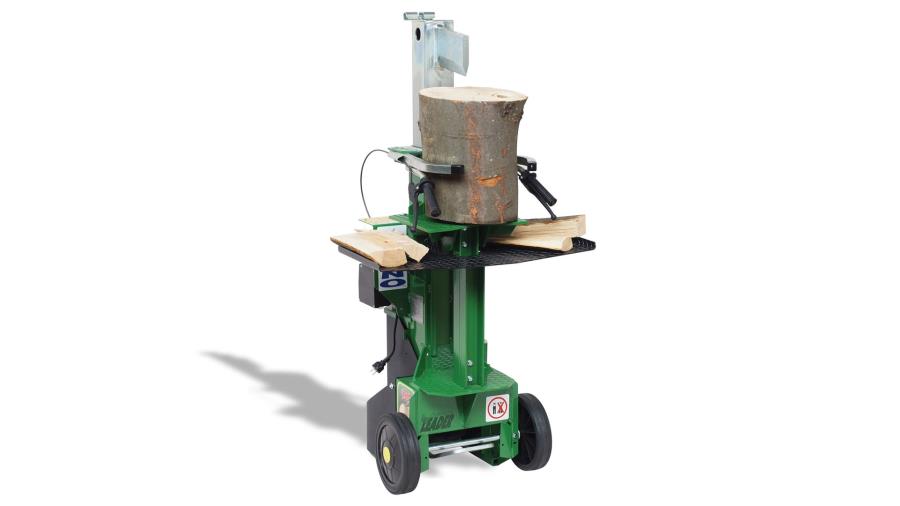

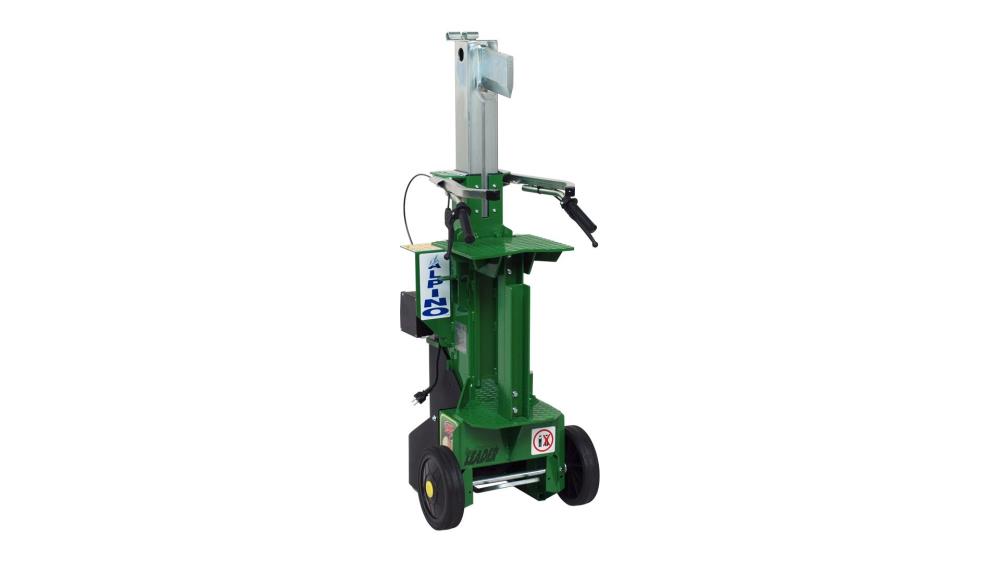

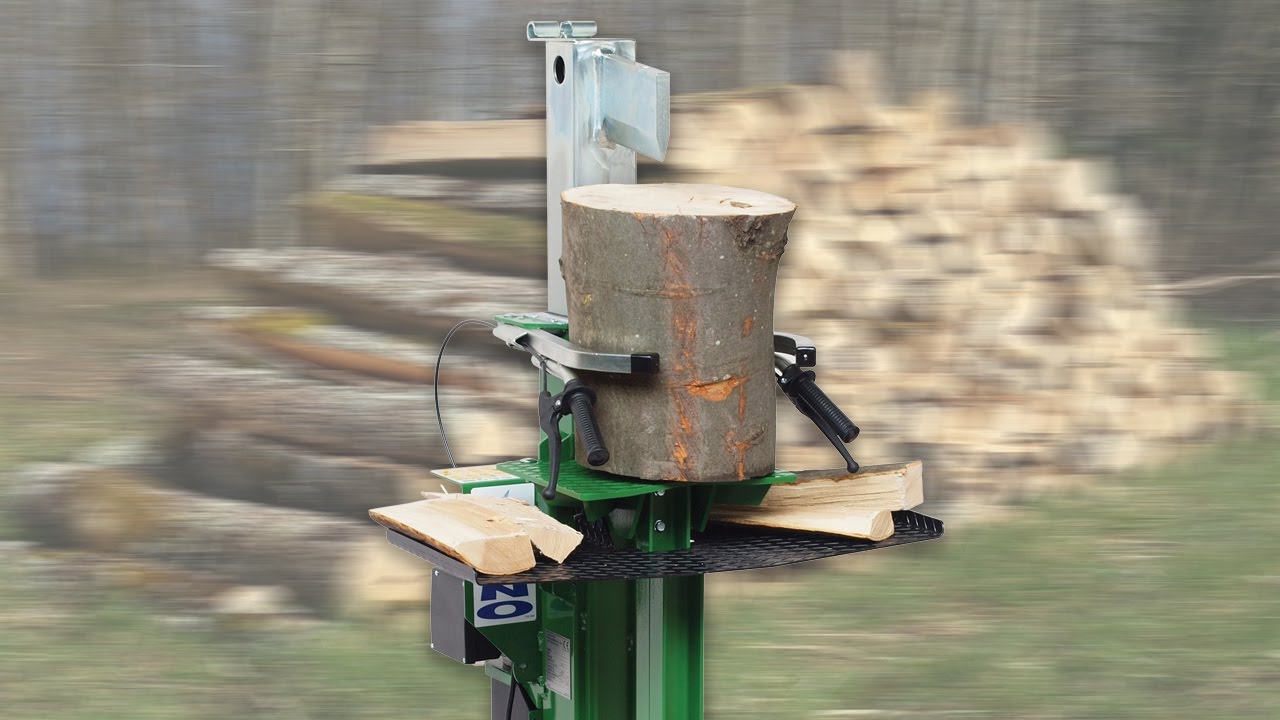

Hydraulic log splitter with vertical working position. With exclusive centering control by pedal.
Their strenght and simplicity will surprise you.
They take up very little space and they are always ready to use.



Features

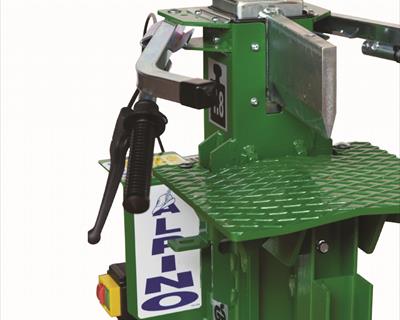

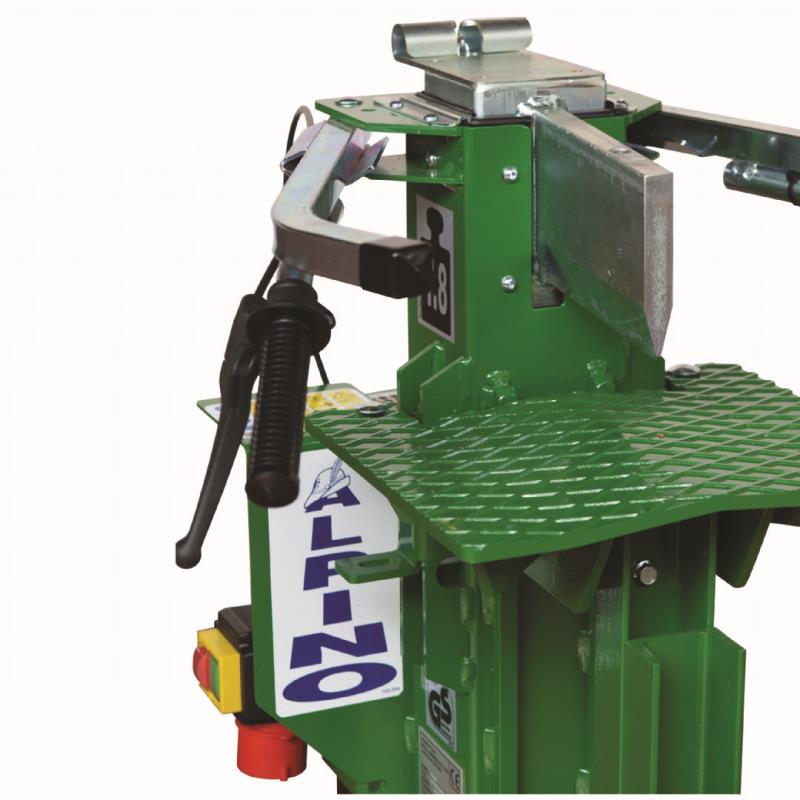

The commands are of the  “System-LEADER” type. Exclusive log centering control with pedal.
The cutting stroke is adjustable between 2 and 50 cm.

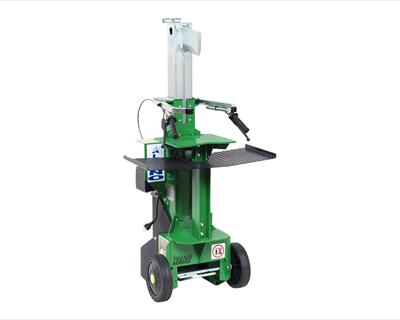

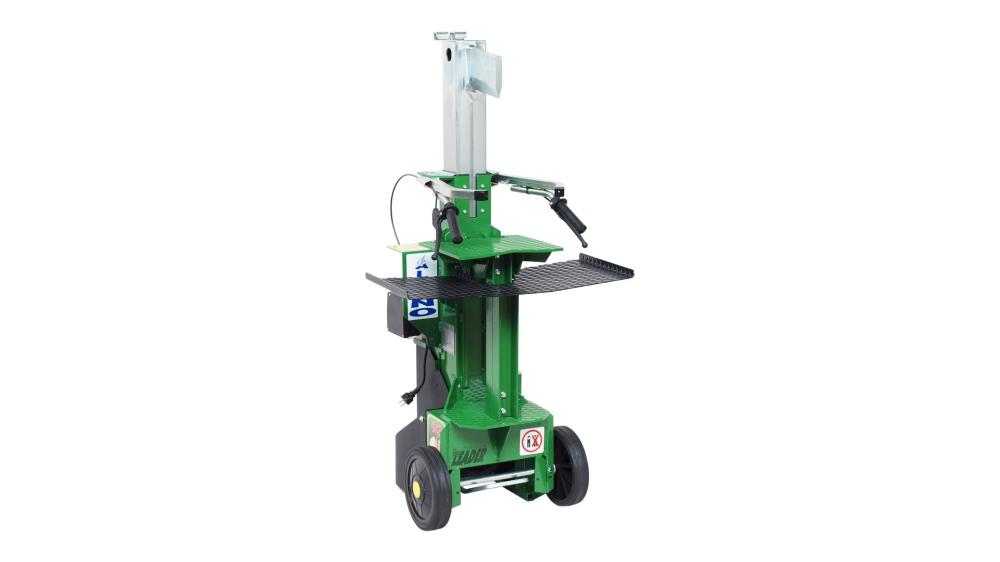

Three working heights, 54 / 67 / 105 cm, can be adjusted by using the tables.
The transport wheels are semi-full wheels : 20 cm dia. on the 6,5 Ton model, 25 cm dia. on the 8,5 Ton model.

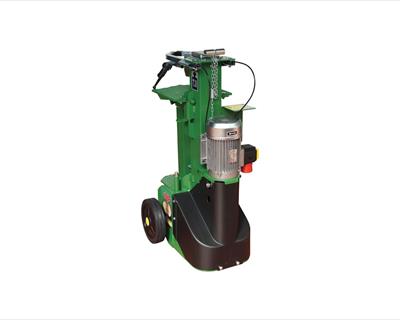

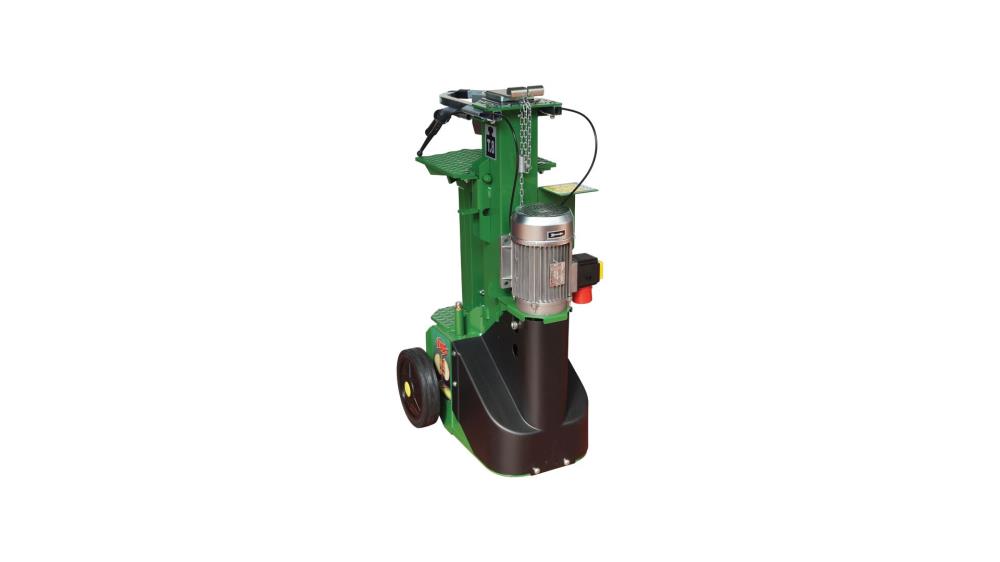

The ABS rear cover is included for 8.5 Ton models.
Available versions
EL 230 Volt with single or double pump
EL 400 Volt with single pump
EL 110 Volt 60 hz engines (upon request)
Accessories Find out which accessories fit on the different Alpino models.



60° Cutter log splitter Cross cutter log splitter Side extensions log splitters Lifting hook logg splitter
60° Cutter
Cross cutter
Side extensions
Lifting hook
Model Splitting force Power required
Hp - kW		 Splitting dia. capacity
cm min - max		 Splitting speed
cm/sec		 Total weight (kg)
AL.225.80
EL 230 Volt
with single pump		 6,5 Ton 2,5 - 1,85 5 - 40 3,2 108
AL.325.80
EL 400 Volt
with single pump		 6,5 Ton 2,5 - 1,85 5 - 40 3,2 108
AS.225.80.PD
EL 230 Volt
with double pump		 8,5 Ton 2,5 - 1,85 5 - 50 10 118
AS.384.90
EL 400 Volt
with single pump		 8,5 Ton 4 - 3 5 - 50 5,3 118
NB: Some data might not correspond to the catalogue and price list in force.
