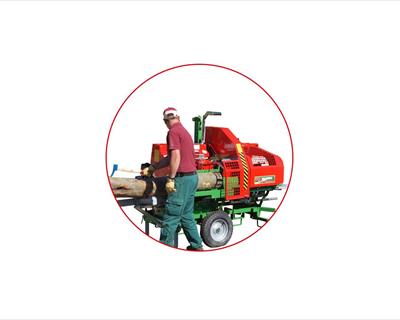

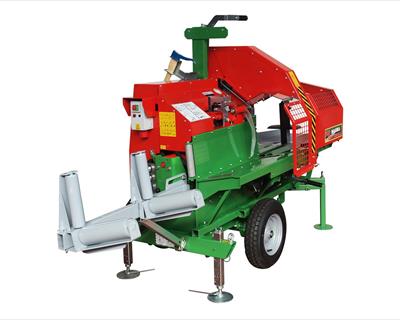

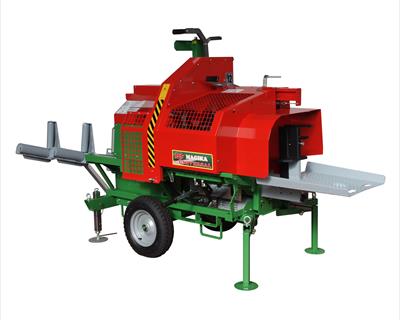

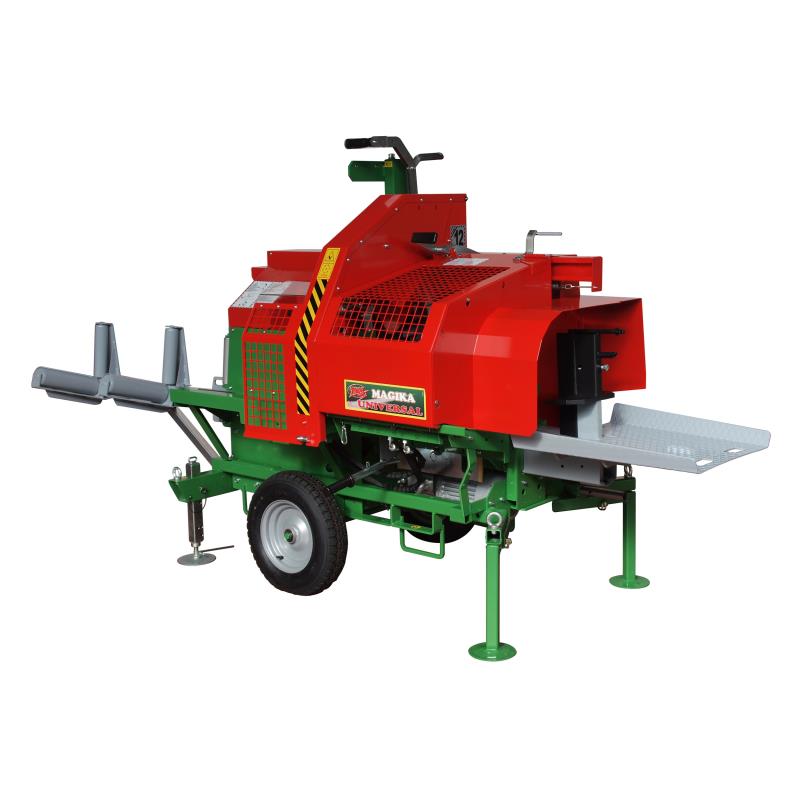

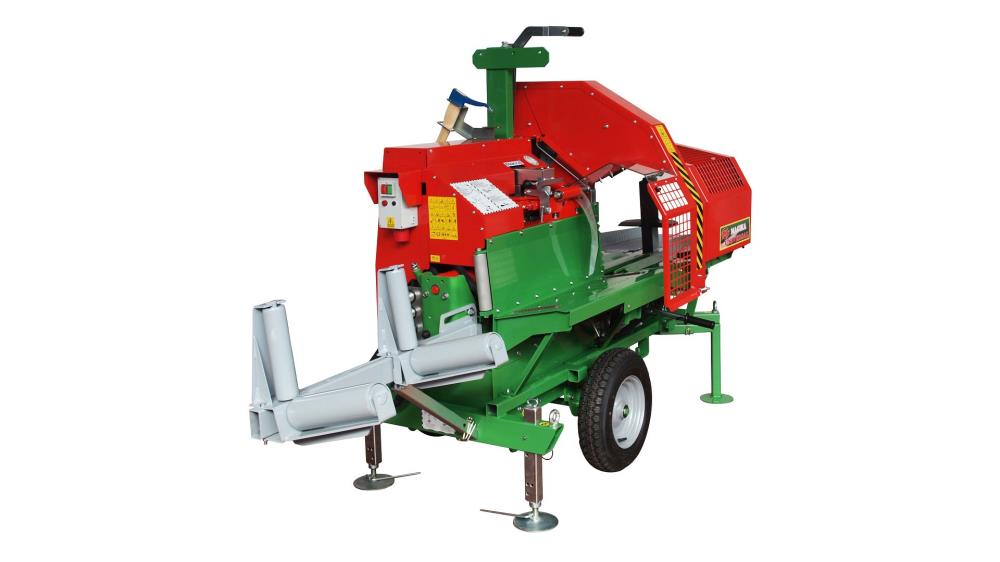

Magika Universal 12 Ton

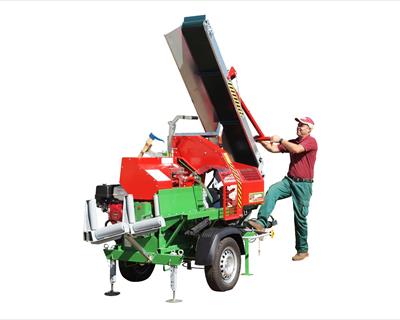

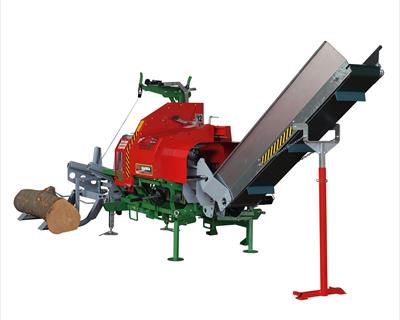

It can be used as a combined cutting and splitting machine and is equipped with a vibrating extension or conveyor belt as optionals for the lifting operations of splitted logs up to a height of 2.10 m (retractable after use).

The sliding safety cover and the 70 cm-height working board make easy the manual positioning of warped logs. The loading board is completely open.

The hydraulic locking clamp ensures a perfect cut and a long durability of the chain. Chain automatic lubrification in every cycle.

The perfect functionality of the hydraulic system is ensured by the tank capacity, that's 40 lt.

An exclusive retracting selector device is fitted in order to select the cutting and splitting diameters.

2-hand control, safety and functional for every operation.

Double splitting speed and fast cutter return.

Full working visibility and very comfortable log moving.

The cutting length is adjustable by a concealed system.

A standard 2-4 blades cutter is included as standard, as well as the side log-feeding extension and the log-loading rolls. The 2-6 blades cutter is optional.

The cutter is easily adjustable or replaceable by handling it on the back of the machine. Optional is the hydraulic adjustment of the cutter height.

The pnuematic wheels, 2 fixed + 1 pivoting (optional), are very useful and practical.

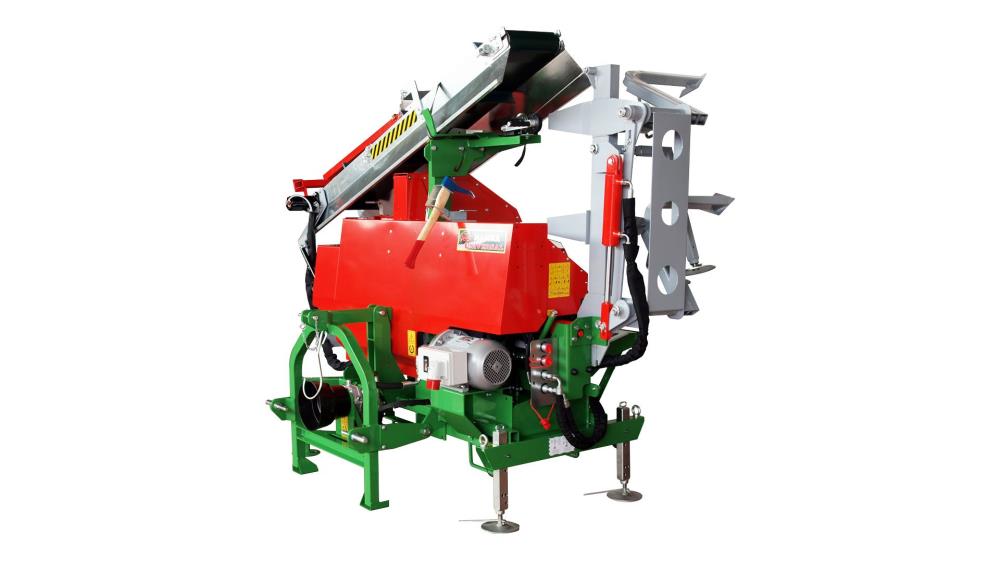

EL 400 Volt with double pump

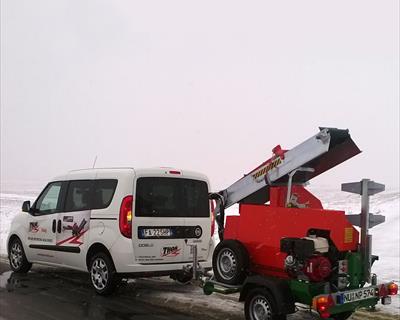

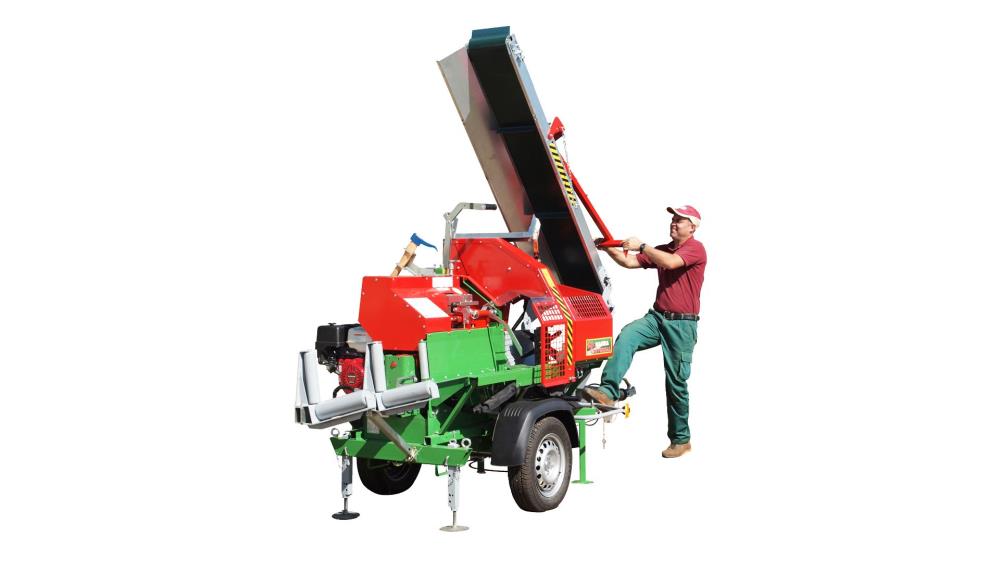

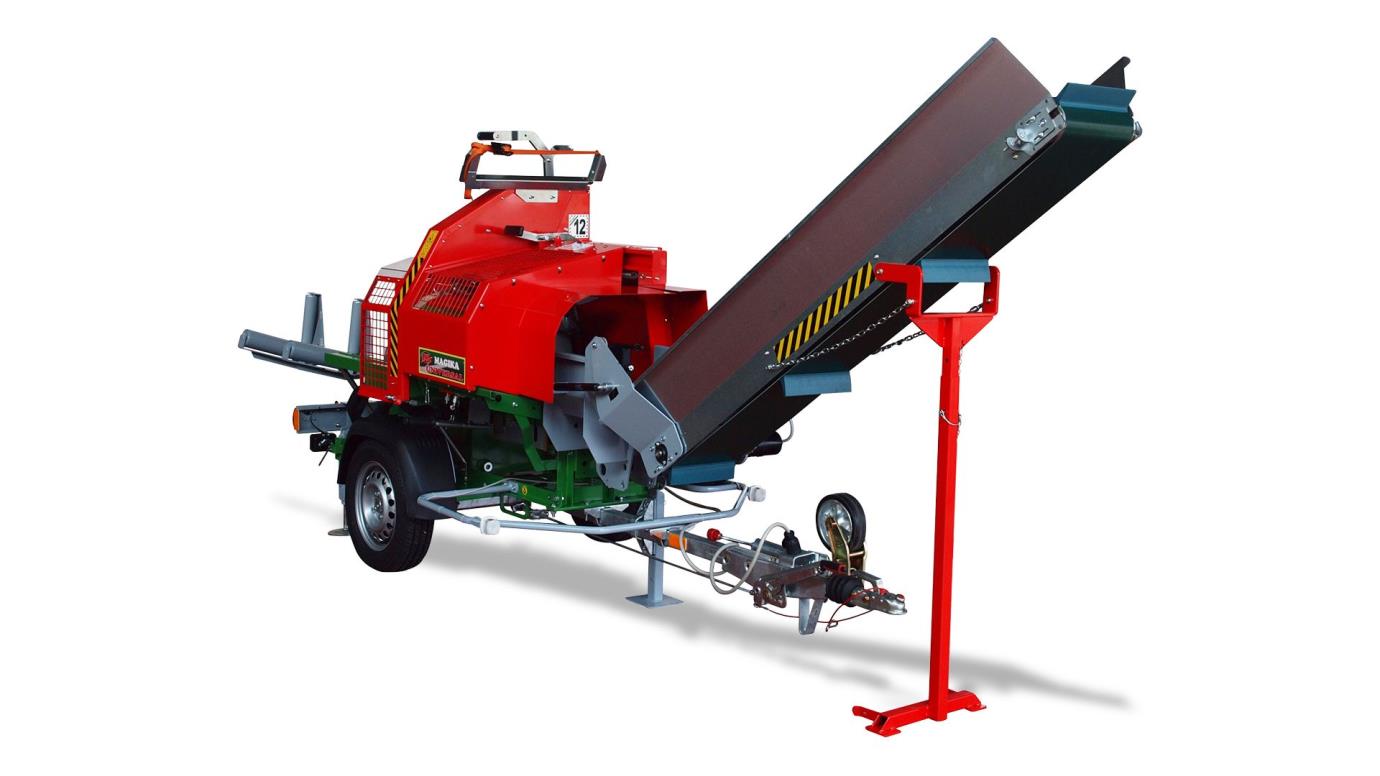

VS petrol 10,3 kW engine (ROAD version)

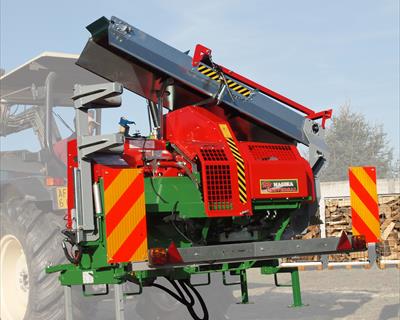

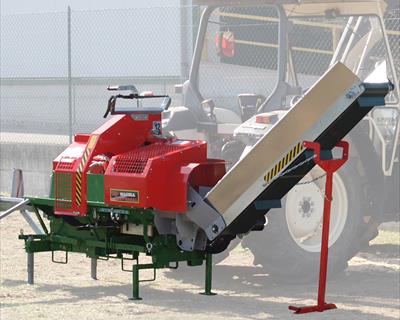

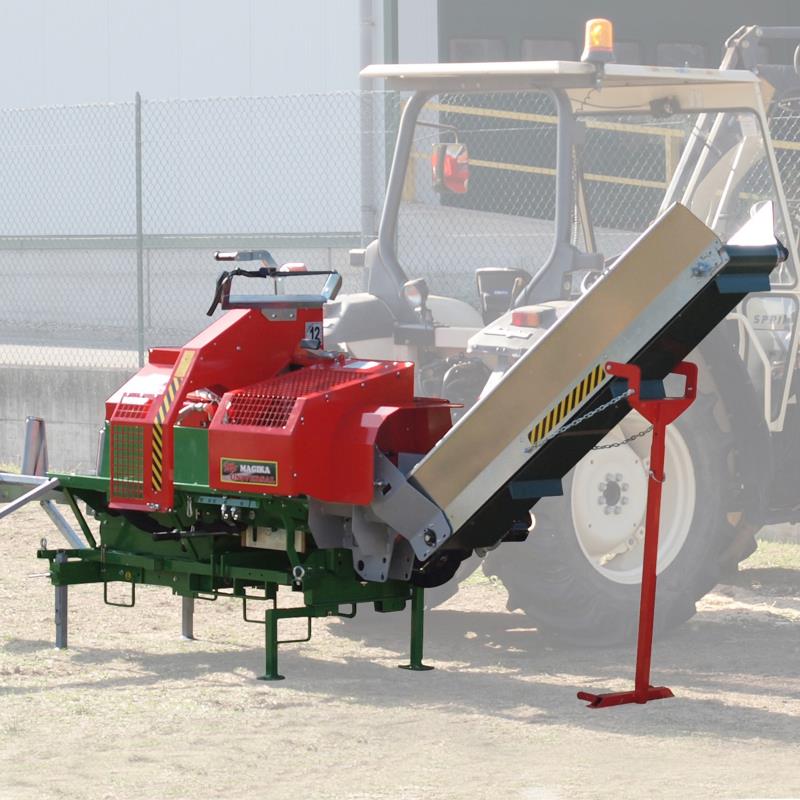

HVP 450 rpm for tractor, detached PTO pump

Hydraulic vibrating
table extension

Hydraulic logs
advancement with
conveyor belt

Conveyor belt
mt. 2,50 x 0,30

2-6 blades cutter

Hydraulic cutter adjustment

2nd pair of rolls 60-90

Log transfer deck
with wheels

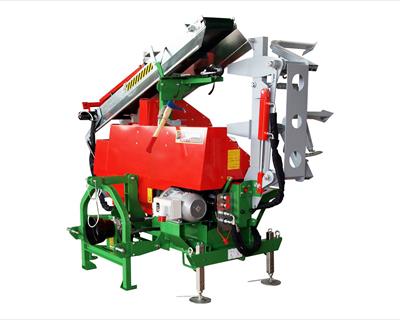

Hydraulic log lift

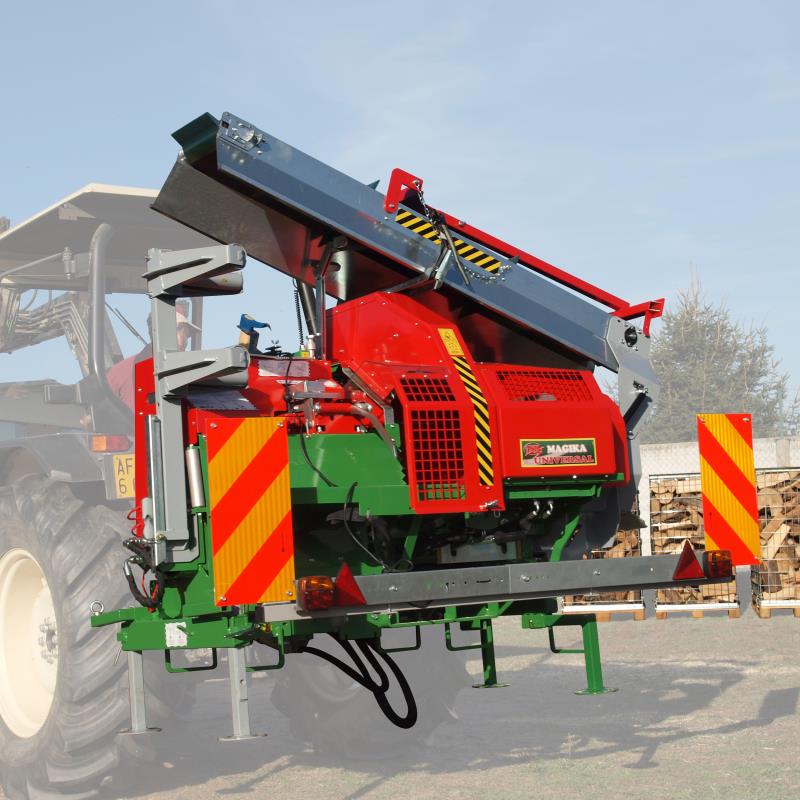

Lights set, for
road circulation

Spare tire
with holder

Digital hour counter

Chain oil lt. 5

Chainsaw 16" - 40 cm

Cutting chain 3,25" x 68 links

Galvanized frame to assemble
for big bag

Ventilated big bag
for 1,5 m³
