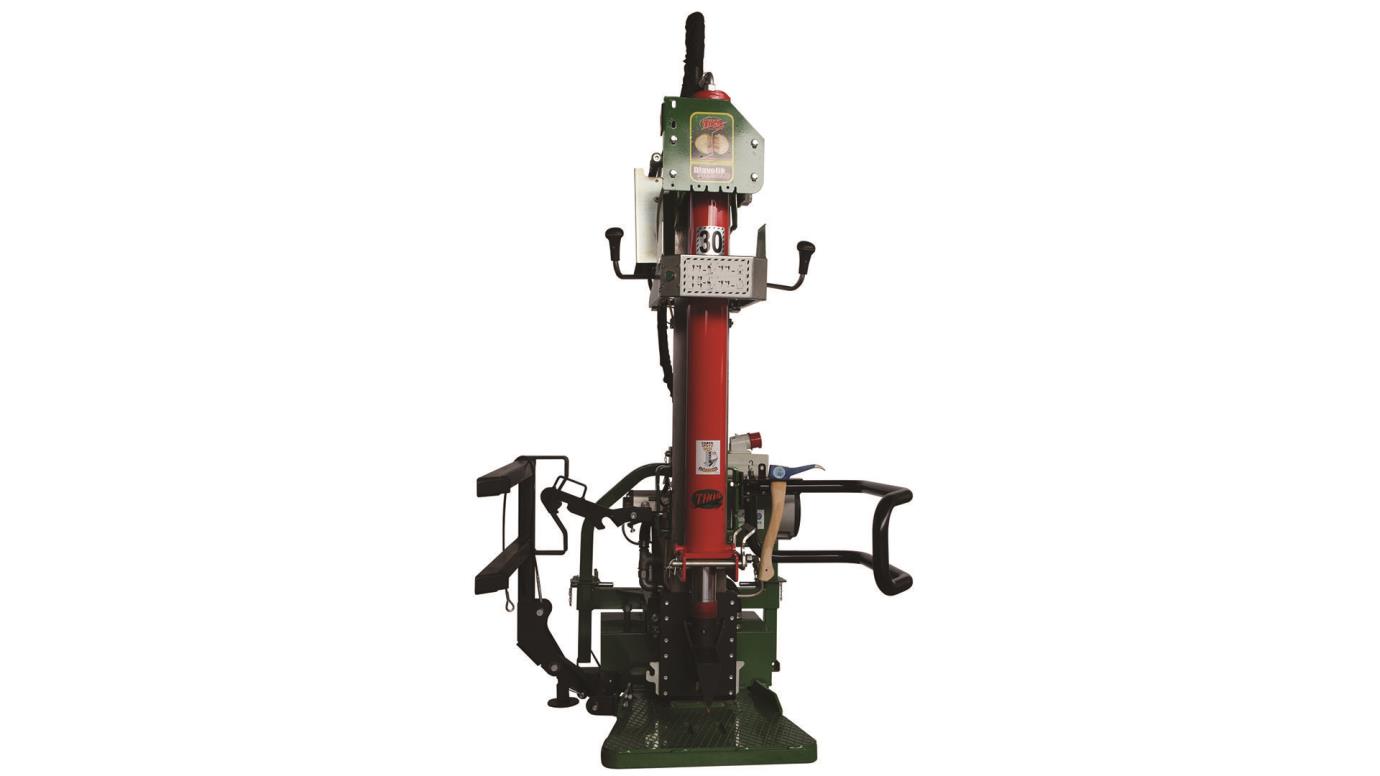

Diavolik STOPandGO 25 - 30 Ton

40 years of THOR experience in the sector.
Diavolik STOPandGO 25 - 30 Ton

Diavolik STOPandGO 25 - 30 Ton

40 years of THOR experience in the sector.

SPLITTING HEIGHT

123 CM

ADJUSTABLE WITH THE BOARD
CUTTING FORCE

25-30 TON

AT CHOICE



Splitter with high sturdiness and stability for industrial and agricultural use!

They are simple and sturdy!
They are manufactured and distributed in a variety of version to choose from with different applications and solutions for different accessories and options.



Features

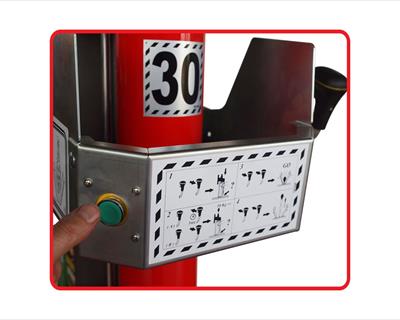

The controls are of the “STOPandGO” type (THOR patent) with exclusive log centering control. .
The double cutting speed SPEEDandPOWER considerably increases the working speed.
They can split logs of very big dimensions up to 100 cm of diameter with outstanding ease and speed.
External hydraulic cylinder, retractable for transport, with 215 cm max. height.
Cast iron guides with greasers, easily interchangeable.

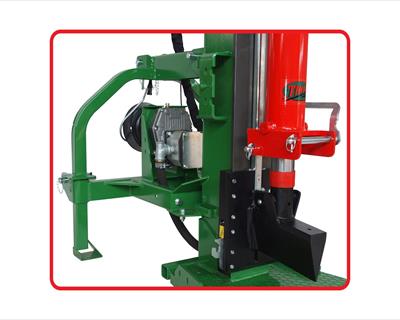

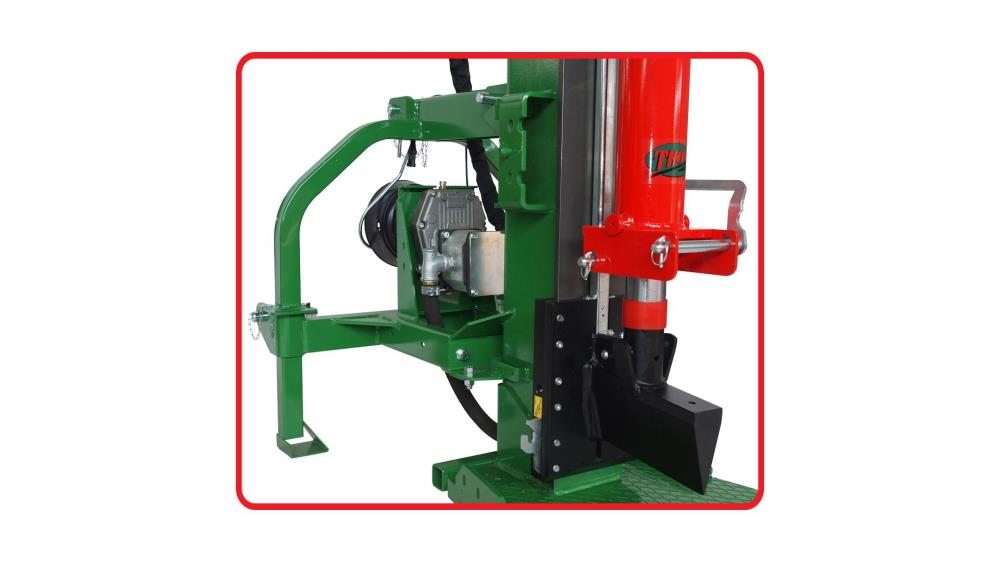

Moving and placing occur through the 3-point connector 1st - 2nd cat., or through the lifting hook.
Available versions

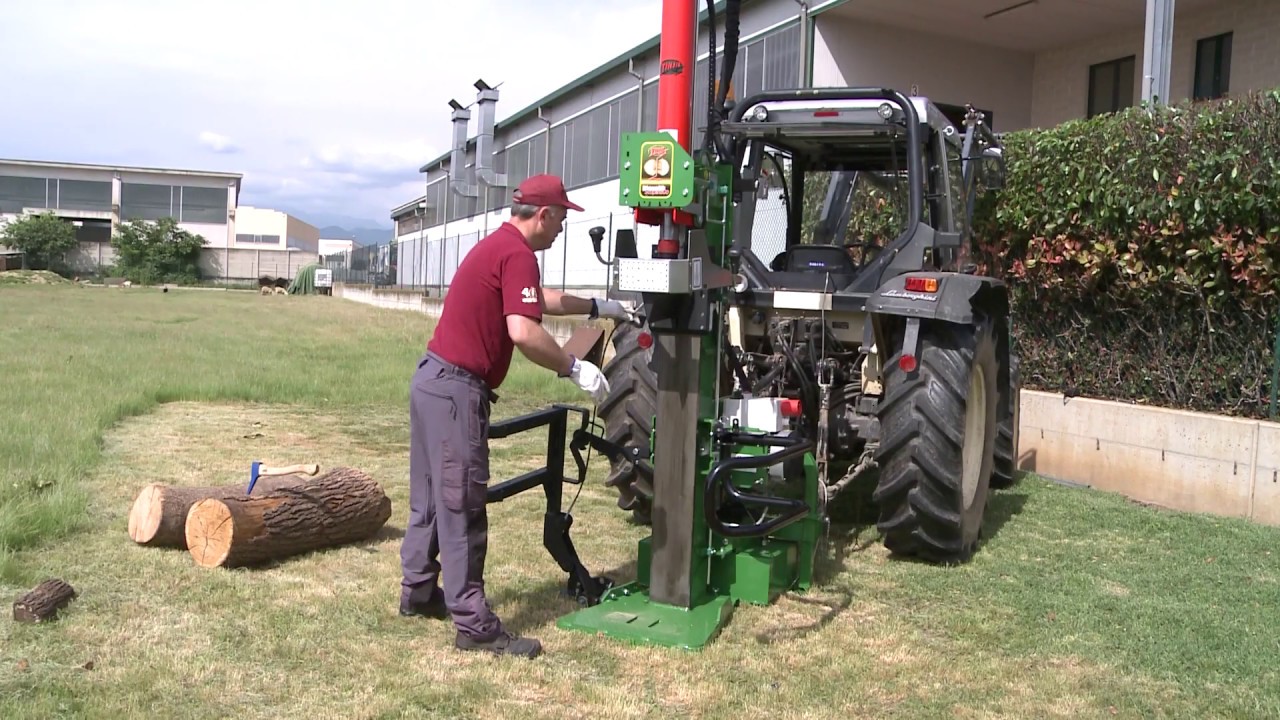

V.PF for tractor with fixed PTO pump to use with shaft
EL 400 Volt with double pump
KOMBI EL+PTO (combined power supply)

"Not Reverse Winch" THOR patent

End customers and dealers can assemble it very easily! Also on already-operating models!
  • Hydraulic power supply from already available V.PF or HVP system.
  • Manual control valve with automatic cable exit.
  • Cable lenght 20 m with hook included.
  • Pulling strenght of 400 kg (can be increased).
  • Pulley rotating to 180° included.
  • Compact, aesthetic, easy and handy.

Accessories Find out which accessories fit on the different Diavolik models



Lifting hook log splitter Board with extensions log splitter Hour counter and rev counter log splitter Cardan shaft log splitter
Lifting hook
Table for cutting 80 cm with lateral extention,
pedal control for the centering fase and container to lift
the logs on the split board
Hour counter
and rev counter
Cardan shaft
Chainsaw holder log splitter Manually controlled winch log splitter Remote controlled winch log splitter Timber tong log splitter Pulley to pull from the bottom log splitter
Chainsaw holder
Manually controlled
winch
Remote controlled
winch
Timber tong
Pulley to pull
from the bottom
Model Splitting force Power required
Hp - kW		 Splitting dia. capacity cm min - max Splitting speed cm/sec Total weight (kg)
46.100
V.PF with fixed PTO pump for tractors		 25 Ton 46 - 34 10 - 130 10,4 - 22,4 638
46.101
V.PF with fixed PTO pump for tractors		 30 Ton 50 - 37 10 - 130 10,4 - 22,4 685
46.102
EL 400 Volt
with double pump		 30 Ton 7,5 - 5,5 10 - 130 8,1 - 17,4 697
46.103
KOMBI (EL 400 Volt + PTO)		 30 Ton 7,5-5,5 / 50-37 10 - 130 8,1/17,4 - 10,4/22,4 722
Note 1: The splitting speeds are measured by using a fixed PTO pump at 600 rpm.
Note 2: Some data might not correspond to the catalogue and price list in force.
