BLADE DIAMETER600 / 700 MMSTEEL OR WIDIA AT CHOICE |
Super compact saw bench for private use!
Safe-to-use, easy to handle and to store after work!
Maintenance and blade's replacement fast and easy.
Features |
|---|
On all models the transmission occurs with long-lasting, noiseless, Poly V flat belts. |
The anchor fulcrum of the trestle is unbreakable as it rotates on oscillating bearings. |
The cutting blade is protected laterally with Ertalon guides. |
The side feed guarantees stability and safety during the working phase even with heavy and hard-to-handle logs. |
The semi-full wheels with 30 cm dia. make moving and positioning easier, also on the V.PF version for tractor. |
Technical differences compared to the previous model |
Tilting bench's safety cover case (Patented device!) |
Modifications on tilting bench and on saw blade covers |
Emergency blade braking device for tractor version (Patented device!) |
Available version |
|
|---|---|
EL 230 Volt with or without flywheel |
|
EL 400 Volt without flywheel |
|
EL 60 Hz engine (upon request) |
|

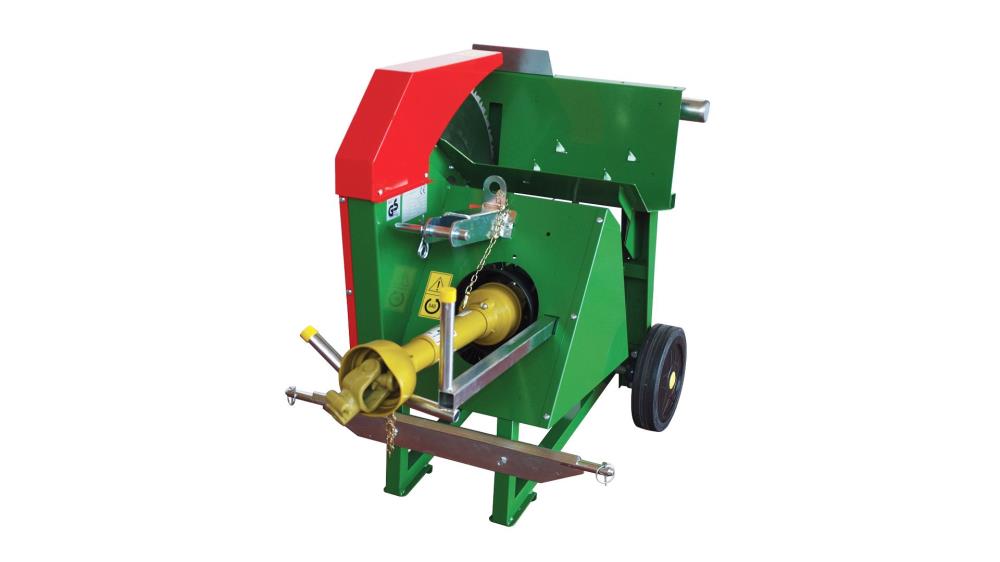

V.PF for tractor with fixed PTO pump at 450 rpm and 3-point-connector |
|
VS petrol engine (upon request) |
Accessories Find out which accessories fit on the different Katana 600/700 models
 |
|
 |
 |
 |
 |
Steel blade |
Widia blade |
Flywheel |
Roller |
Lifting hook |
Cardan shaft |
| Model | Blade | Rpm | Power required Hp - kW |
Cutting diameter cm min - max |
Total weight (kg) |
|---|---|---|---|---|---|
| K 70.100 EL 230 Volt without flywheel |
steel or widia dia. 600 |
1600 | 3 - 2,2 | 2 - 22 | 124 |
| K 70.101 EL 230 Volt with flywheel |
steel or widia dia. 700 |
1400 | 3 - 2,2 | 2 - 28 | 142 |
| K 70.102 EL 400 Volt without flywheel |
steel or widia dia. 700 |
1400 | 5 - 3,7 | 2 - 28 | 133 |
| K 70.103 PTO pump at 450 rpm and 3-point-connector |
steel or widia dia. 700 |
1400 | 11 - 8 | 2 - 28 | 131 |
| K 70.104 VS petrol engine |
steel or widia dia. 700 |
1400 | 9 - 6,7 | 2 - 28 | 180 |
| Note: Some data might not correspond to the catalogue and price list in force. | |||||
NOTE: some images may not correspond entirely to the machine in your possession.
