BLADE DIAMETER750 MMSTEEL OR WIDIA AT CHOICE |

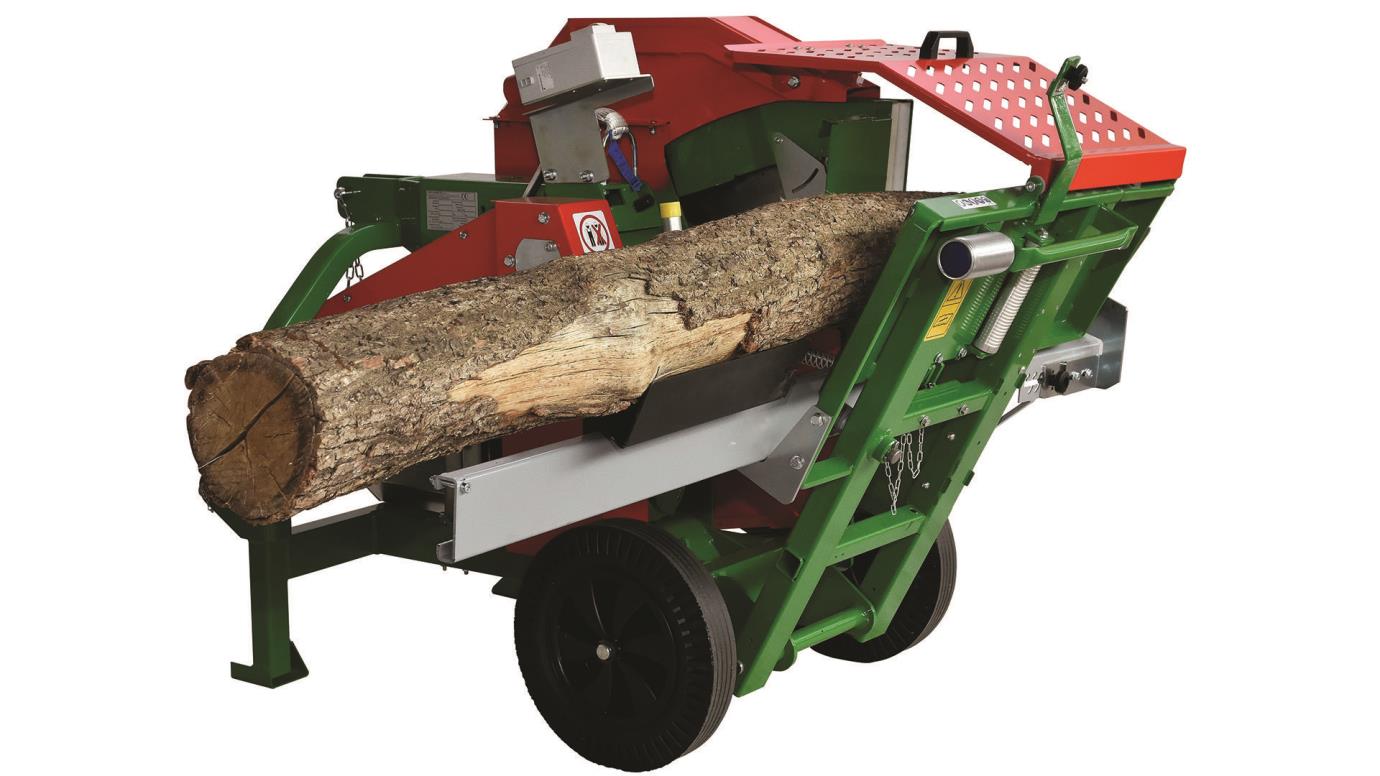

Saw benches with great stability for industrial and agricultural use!
Very stable and strong, with a unique and innovative design.
Exceptional performance and cutting speed.
Maintenance and blade's replacement fast and easy.
Features |
|---|
The side log feed (optional on the ECO model) makes the discharging and any future combination with conveyor belt (Tandem) easier. |
The side log feed mounted on ball bearings makes the sliding operation of the logs to be cut easier. |
The anchor fulcrum of the balancing trestle is fixed onto unbreakable self-lubricating DU bushings. |
The cutting blade is laterally protected with Ertalon guides. |
The semi-full 400 dia. wheels or the 400 dia. pneumatic wheels (optional) ease the moving and transport operations. |
All models are equipped with 3-point-connector 1st – 2nd cat. |
Technical differences compared to the previous model |
Tilting bench's safety cover case (Patented device!) |
Modifications on tilting bench and on saw blade covers |

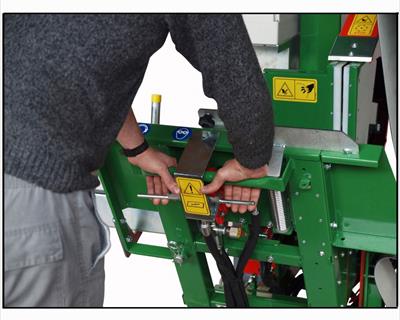

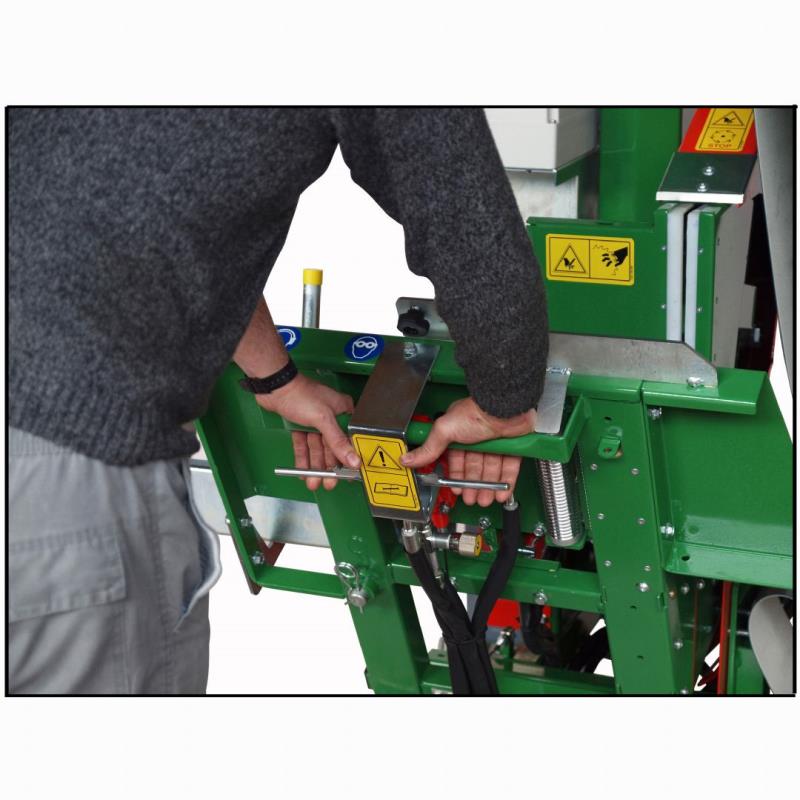

Emergency blade braking device for tractor version (Patented device!) |
Available version |
|
|---|---|
V.PF PTO pump at 450 rpm and 3-point-connector |
|
EL 400 Volt engine. |
|
EL 60 Hz engines (upon request) |
|
VS petrol engine (upon request) |
|
KOMBI (EL+PTO) |
Accessories Find out which accessories fit on the different Katana 750 models
 |
|
 |
 |
Steel blade |
Widia blade |
Lifting hook |
Pneumatic wheels 400 dia. |
 |
 |
Cardan shaft with
|
Roller |
| Model | Blade | Rpm | Power required Hp - kW |
Cutting diameter cm min - max |
Total weight (kg) |
|---|---|---|---|---|---|
| K 75.101 540 rpm and 3-point-connector |
steel or widia dia. 750 |
1400 | 25 - 18 | 2 - 30 | 240 |
| K 75.103 EL 400 Volt |
steel or widia dia. 750 |
1400 | 12 - 9 | 2 - 30 | 325 |
| K 75.104 KOMBI (EL 400 Volt + PTO) |
steel or widia dia. 750 |
1400 | 7,5-5,5 / 25-18 | 2 - 30 | 300 |
| K 75.105 VS petrol engine |
steel or widia dia. 750 |
3200 | 13 - 9,55 | 2 - 30 | 350 |
| Note: Some data might not correspond to the catalogue and price list in force. | |||||
NOTE: some images may not correspond entirely to the machine in your possession.
