SPLITTING LENGTH107 CM |
SPLITTING FORCE13-18 TONAT CHOICE |
SPLITTING DIAMETER60 CM |
Horizontal log splitter for professional and forestry use!
Available in different versions, trailed or carried by tractor.
The centering of the log to split occurs through a bit welded onto the cutter guide.
They are compact, powerful and space-saving for easy storage.
Features |
---|
Standard dual control levers. |
A handy and useful side hydraulic hoist (see video) is provided upon request (optional). |
The double cutting speed "SPEEDandPOWER" considerably increases the working speed. |

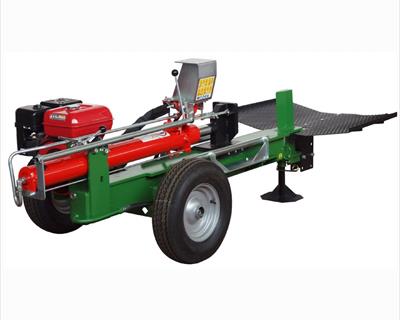

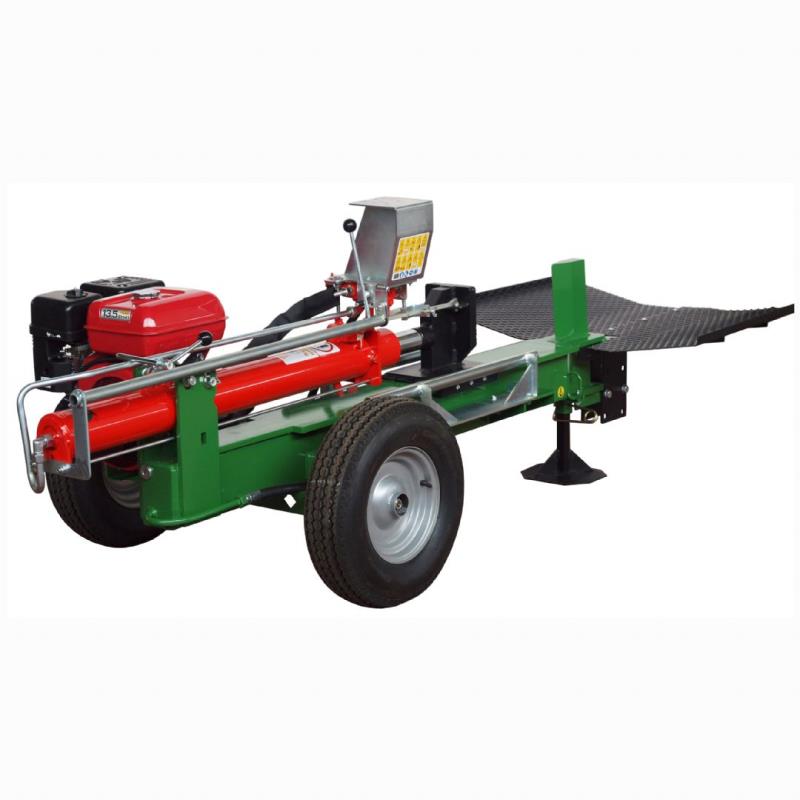

The rear extension (optional) eases the collection and picking up of the split pieces. |
Hydraulic cylinder retractable for transport. |
All models are supplied with an external cartridge filter in suction. |

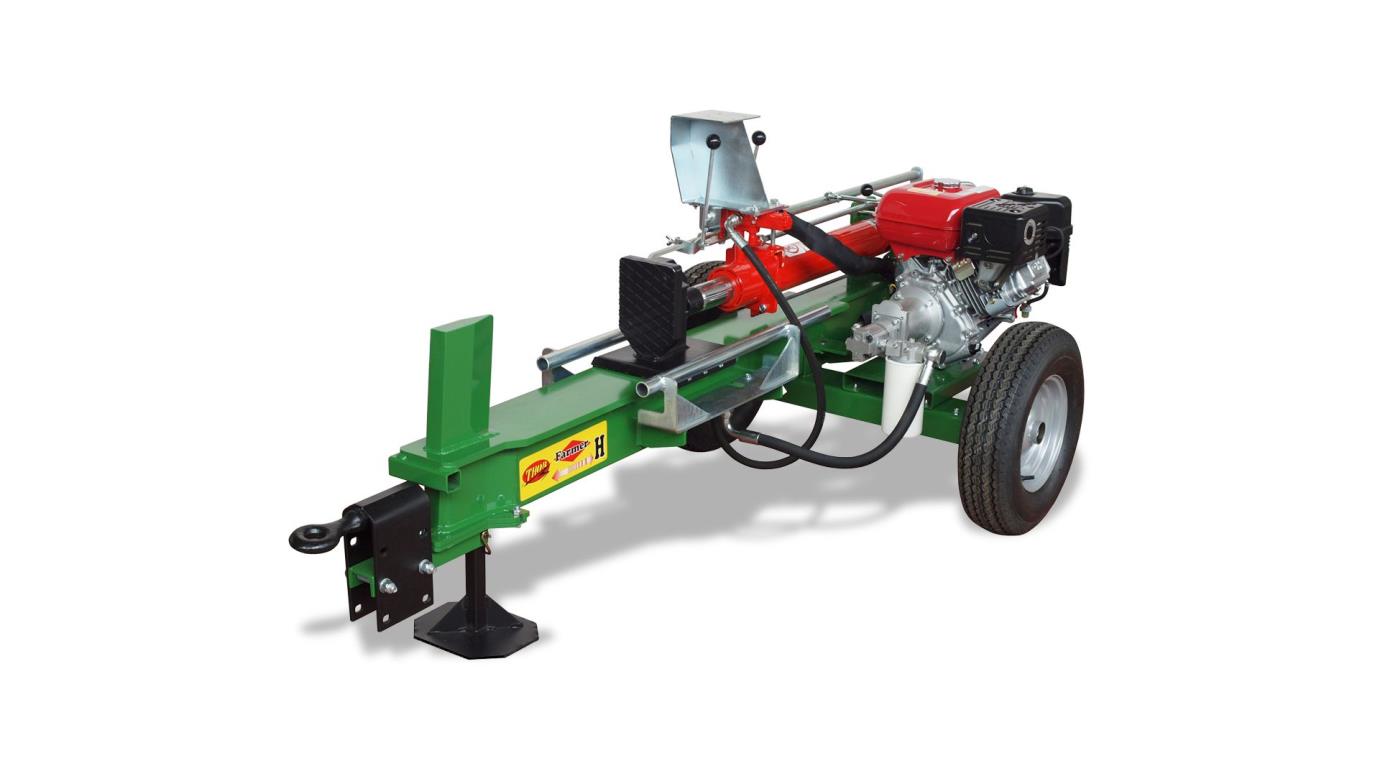

Moving and transport occur obliquely through the 3-point connector 1st-2nd cat. for tractor models, or dragged with pneumatic wheels of 500 dia. and tow hook for models with petrol or EL engine. |
High strength cast iron guides, easily interchangeable. |
Available versions |
|
---|---|

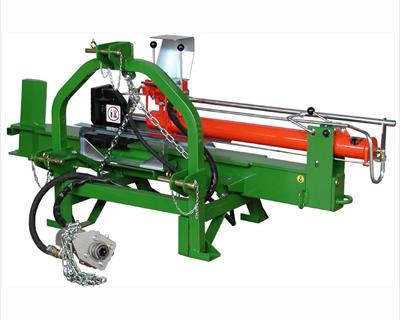

HV with hydraulic connections to the tractor |
|

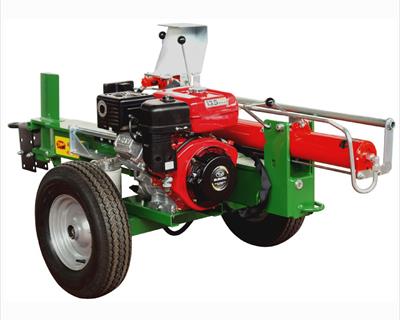

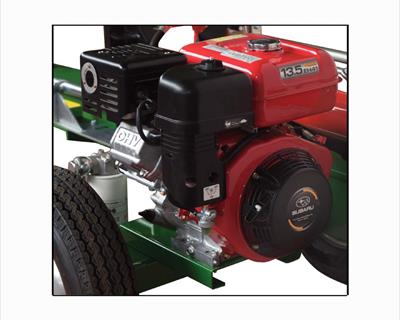

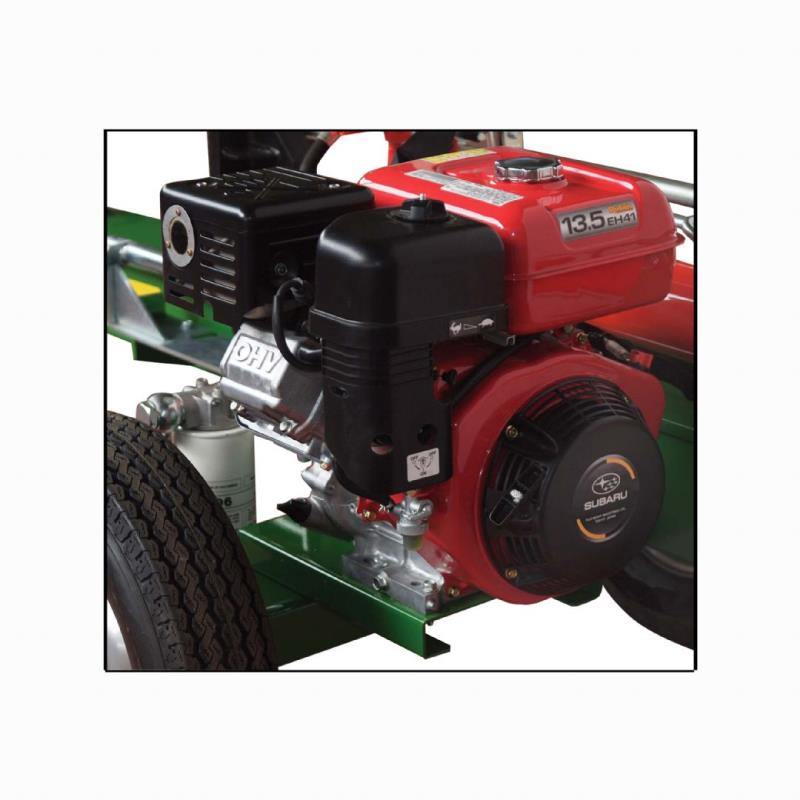

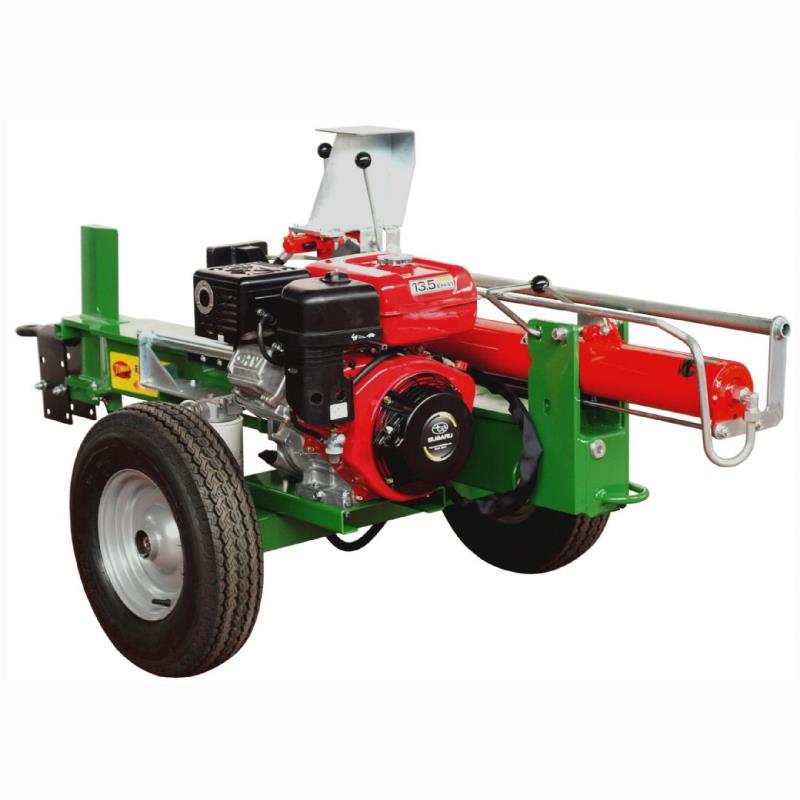

VS petrol engine with double pump |
|
HVP for tractor with detached PTO pump 540 rpm. |
|
V.PF for tractor with fixed pump (upon request) |
|
VSD diesel engine with double pump (upon request) |
|
EL 400 Volt or 230 Volt (upon request) |
Accessories Find out which accessories fit on the different Farmer H models
Cross cutter |
Rear extensions |
Lifting hook |
Hydraulic side
|
Model | Splitting force | Power required Hp - kW |
Splitting dia. capacity cm min - max |
Splitting speed cm/sec |
Total weight (kg) |
---|---|---|---|---|---|
38.13.HV for tractor with hydraulic connections |
13 Ton | ? - ? | 10 - 60 | ? - ? | 215 |
38.13.HVP for tractor with detached PTO pump 540/rpm |
13 Ton | 22 - 16 | 10 - 60 | 10,5 - 33,5 | 253 |
38.13.VS.10.PD VS petrol with double pump |
13 Ton | 9 - 6,7 | 10 - 60 | 7,5 - 23 | 296 |
38.18.HVP for tractor with detached PTO pump 540/rpm |
18 Ton | 24 - 18 | 10 - 60 | 8,5 - 19 | 293 |
38.18.VS.13.PD VS petrol with double pump |
18 Ton | 13 - 9,55 | 10 - 60 | 6,3 - 14,1 | 323 |
Note 1: The splitting speeds are measured by using the fixed PTO pump at 500 rpm. Note 2: Some data might not correspond to the catalogue and price list in force. |
