CUTTING DIA.18 CM |
 |
WIDIA BLADE DIA.600 MM X HOLE 30 |
 |
CHANNELS3 |

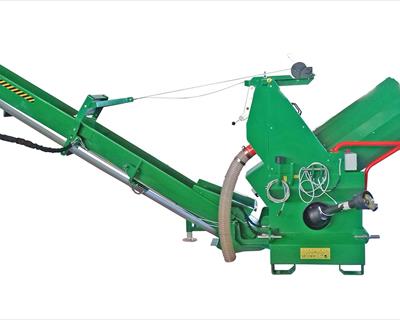

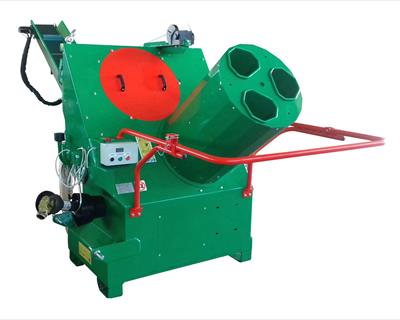

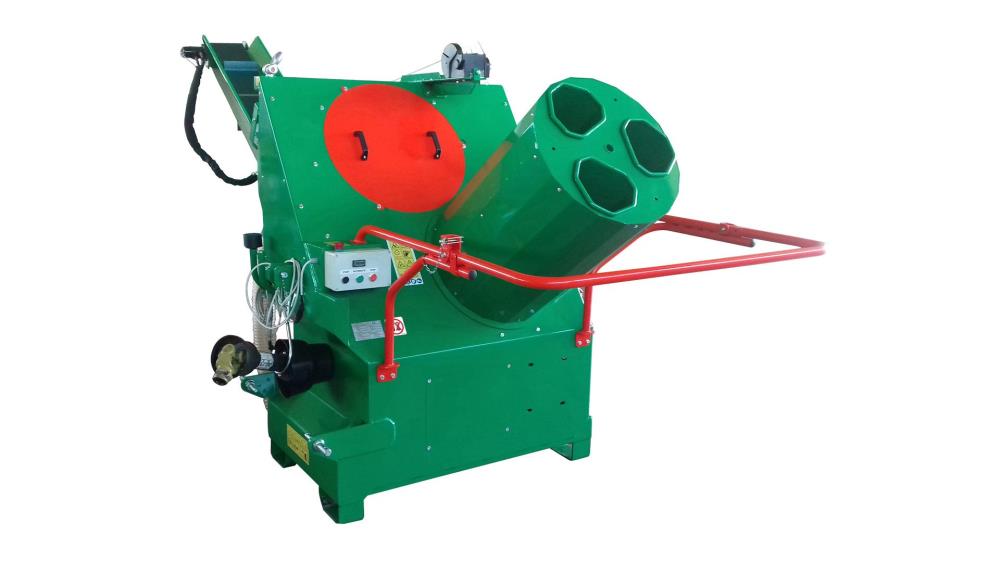

Drum saw "Revolver" with automatic rotation
 |
Patented loading system with stationary drum. |
| 2 load channels with great space for sliding of logs up to 180 mm dia. + 1 cut channel. |
Unique in its kind with great ease of loading exclusively in empty channels.
Features |
|---|
Automatic drum rotation at cut ending. |

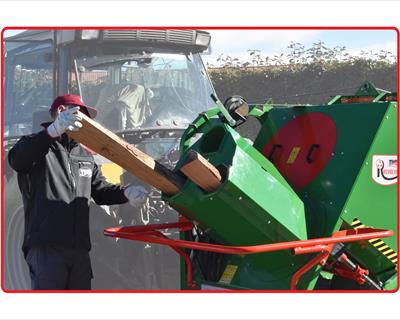

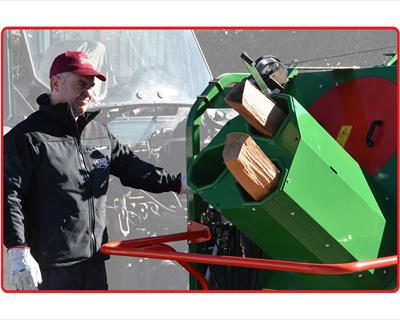

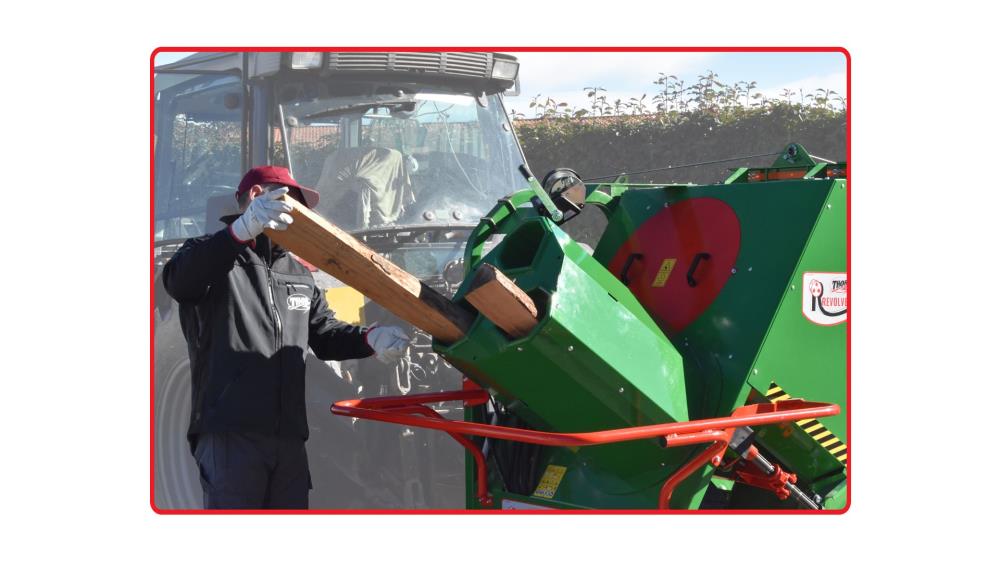

No risk of injury during loading the logs. |
Energy saving and less wear thanks to the total absence of empty rotations. |
Total stop by lack of load. |
Cutting length adjustment 25-30-33-40-45-50 cm. |
Clean cuts thanks to the secure locking of the logs with a gripper before every single cut. |
Cutting blade widia dia. 600 mm x hole 30 with 78 teeth, highly available on the market. Its replace is easy and approachable. |
Hydraulic drive of the blade and electro-hydraulic controls. |
Hydraulic system with 50 l. oil and filter in suction. |

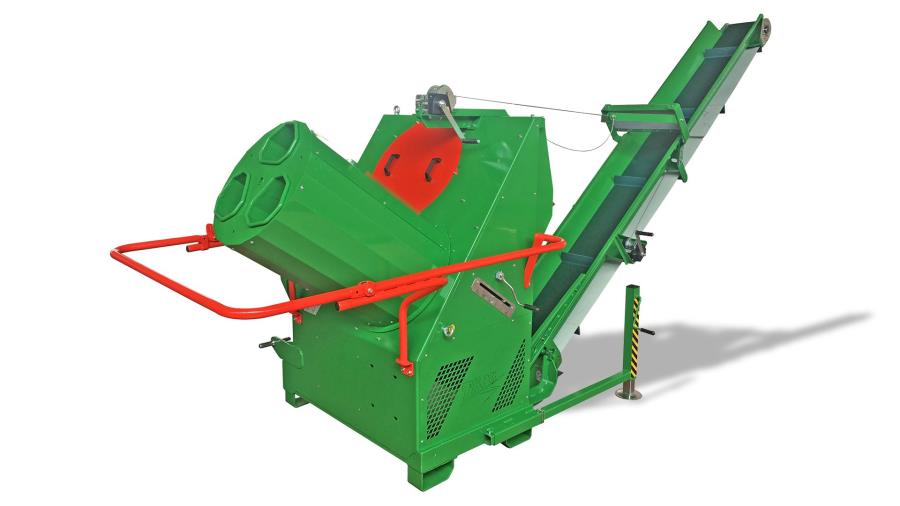

Telescopic conveyor belt, 4 m or 5 m long at choice. Positioning of the tape by manual winches. |
Available versions |
|
|---|---|
V.PF PTO at 350 rpm. 3-point connector 1st – 2nd cat. |
|
KOMBI EL 400 Volt motor 12 Hp, 9 kW + PTO 350 rpm for blade and conveyor belt |
Optional Accessories Find out which accessories fit on the Revolver model
|
|
|
|
Cardan shaft |
Hour-counter or pcs.-counter |
Lighting bar for road transport |
| Model | Blade | Blade rpm | Power required PS (Hp) - kW |
Cutting dia. cm max |
Total weight (kg) |
|---|---|---|---|---|---|
| RV.18.100 V.PF at 350 rpm |
widia dia. 600 mm | 1600 rpm | 24 - 18 | 18 | 720 |
| RV.18.102 KOMBI (EL 400 Volt + PTO) |
widia dia. 600 mm | 1600 rpm | 12-9 / 24-18 | 18 | 870 |
| Note: Some data might not correspond to the catalogue and price list in force. | |||||
