Hakka/B 9 Ton (only for non-EU markets)

Max. splitting height 70 cm - max. splitting lenght 70 cm
Hakka/B 9 Ton (only for non-EU markets)

Hakka/B 9 Ton (only for non-EU markets)

Max. splitting height 70 cm - max. splitting lenght 70 cm

CUTTING HEIGHT

70 CM

ADJUSTABLE
CUTTING LENGHT

70 CM

ADJUSTABLE
CUTTING FORCE

9 TON

Three working position log splitter!

Hydraulic log splitter on wheels to move and place manually.

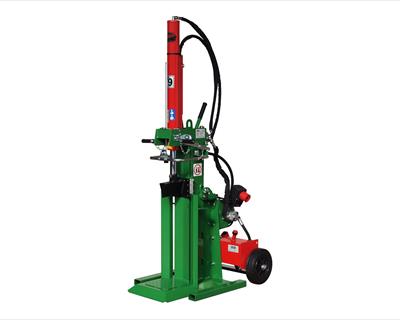

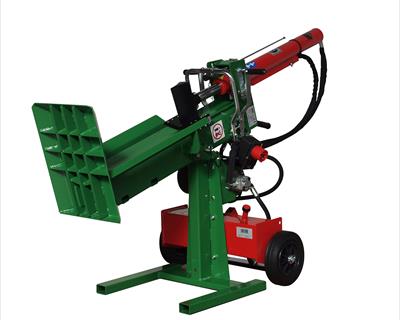

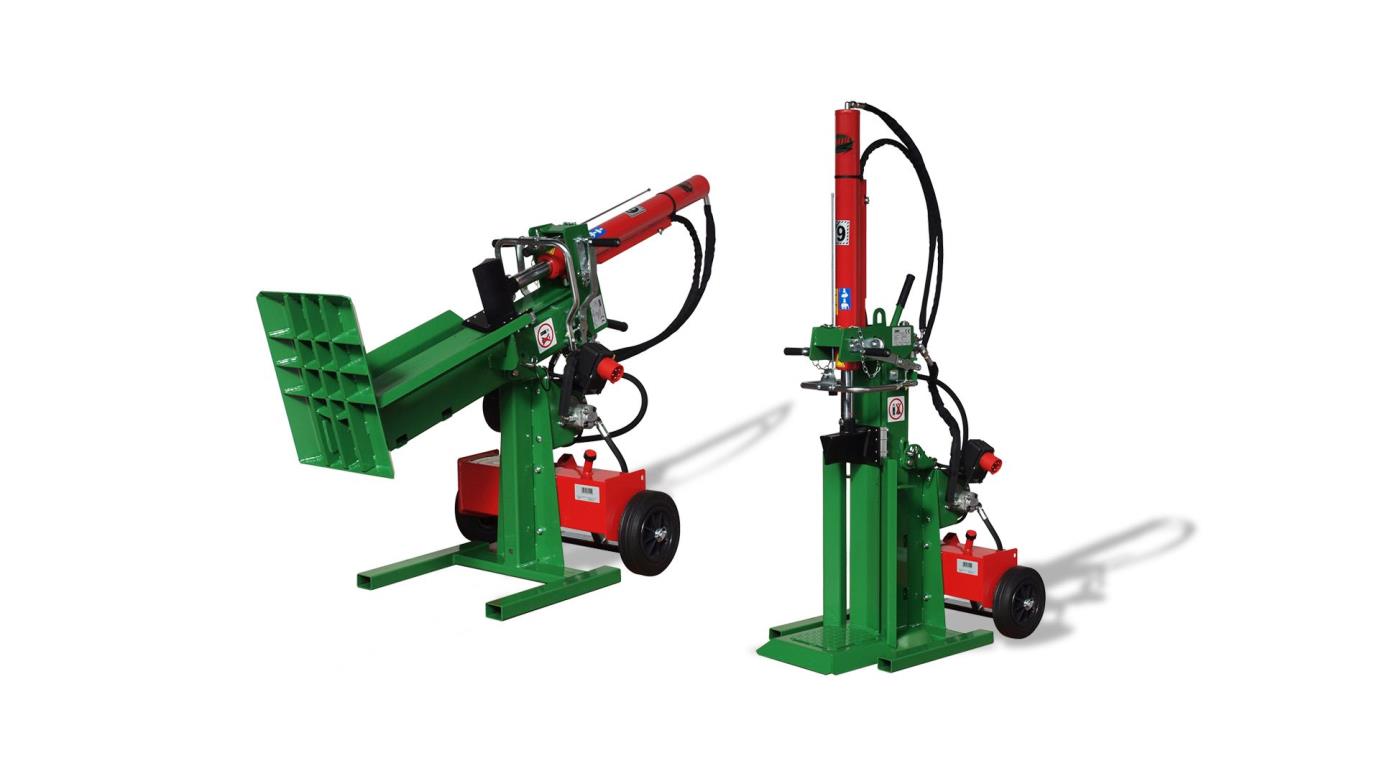

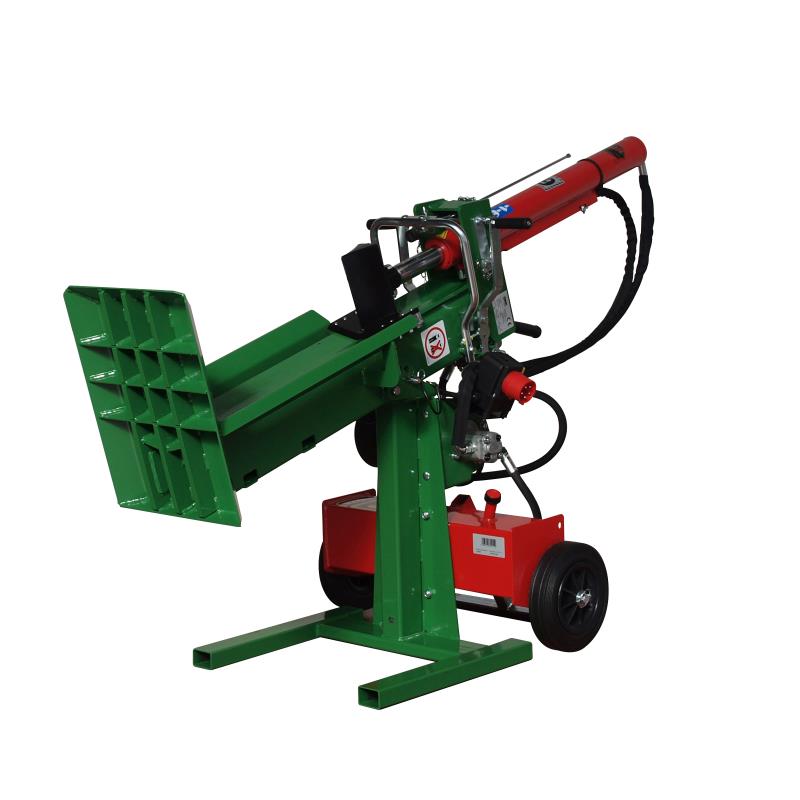

They can work in three different positions: vertical, horizontal or inclined at 45 °.
The hydraulic cylinder is retractable after work for space-saving storage .



Features
Power supply by electric engine EL 230 Volt 3 Hp or EL 400 Volt 4 Hp with single pump.
Transport wheels are 250 mm dia. full wheels, that facilitate the moving.
The two-wedge cutter is provided as standard (cross cutter - optional).
Suitable for logs up to a diameter of 40 cm.
Standard dual control levers for centering and splitting.
Cutter guides made of cast iron and bronze.
Available versions
EL 230 Volt with single pump
EL 400 Volt with single pump

Accessories Find out which accessories fit on the different Hakka/B models



Cross cutter log splitter
Cross cutter
Model Splitting force Power required
Hp - kW		 Splitting dia. capacity
cm min - max		 Splitting speed
cm/sec		 Total weight (kg)
9.70.223
EL 230 Volt
with single pump 		9 Ton 3 - 2,2 10 - 40 2,4 156
9.70.384
EL 400 Volt
with single pump 		9 Ton 4 - 3 10 - 40 3,6 156
Note: Some data might not correspond to the catalogue and price list in force.
