CUTTING HEIGHT54 CMADJUSTABLE |
 |
CUTTING FORCE6,5-8,5 TONAT CHOICE |
A considered choice for every family!

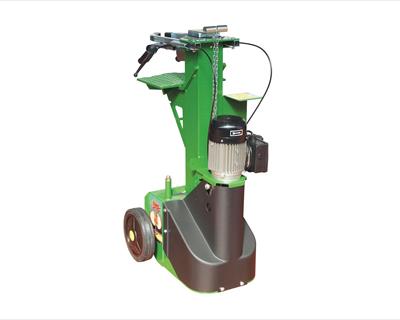

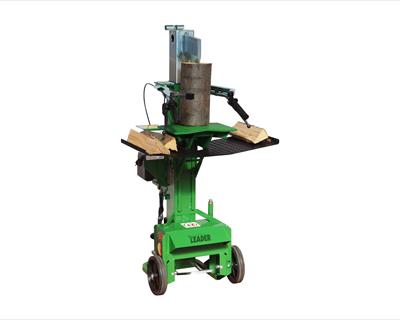

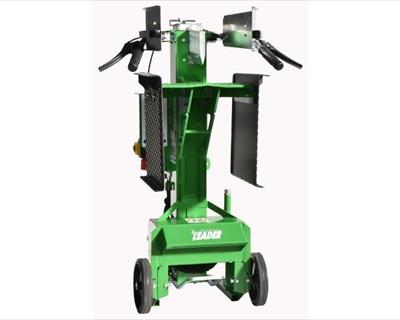

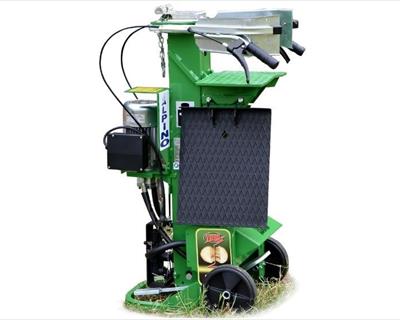

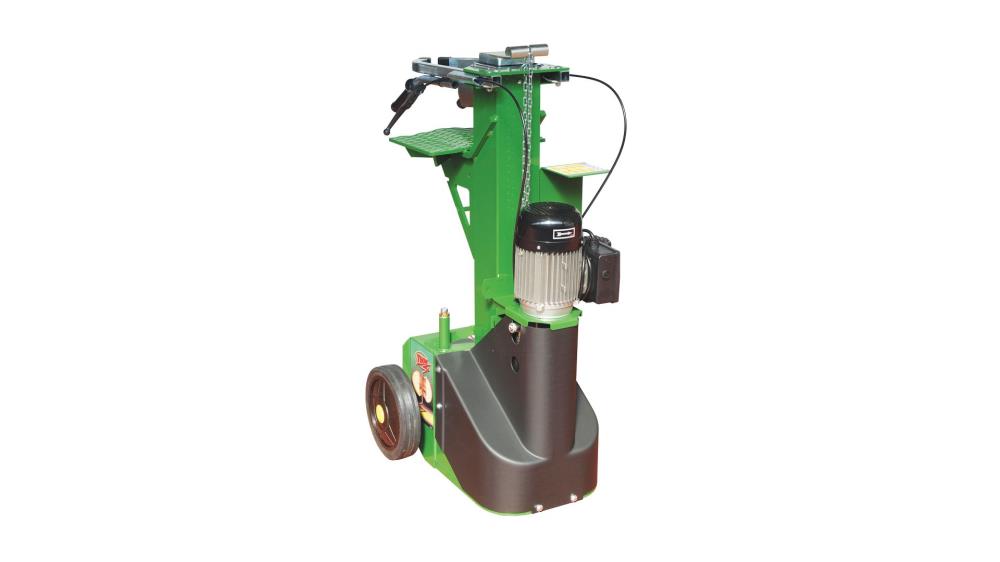

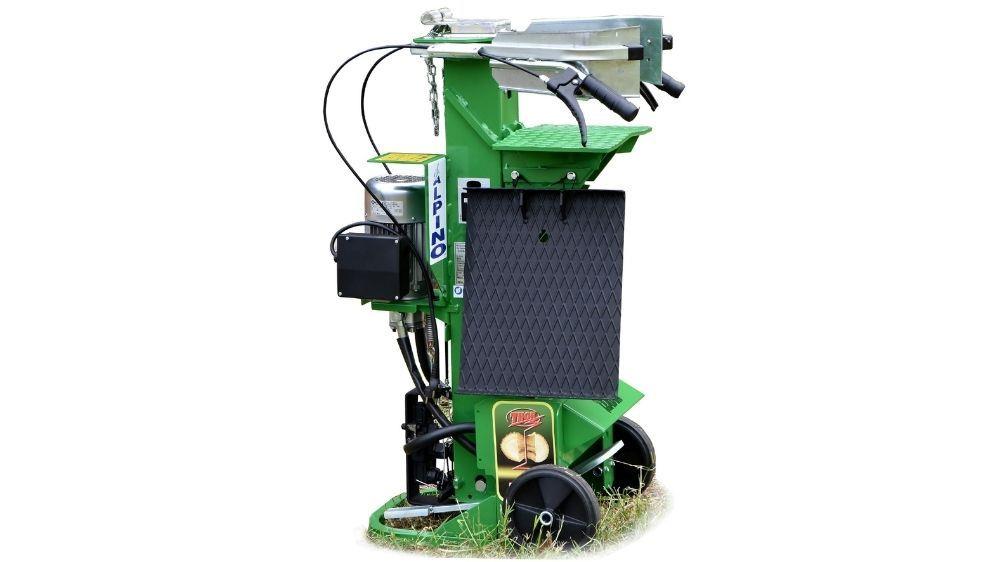

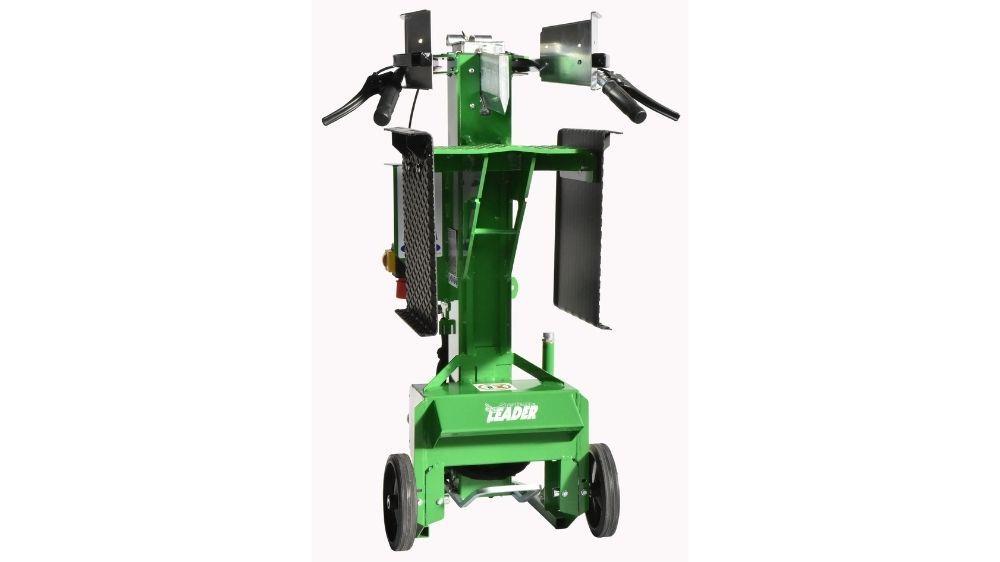

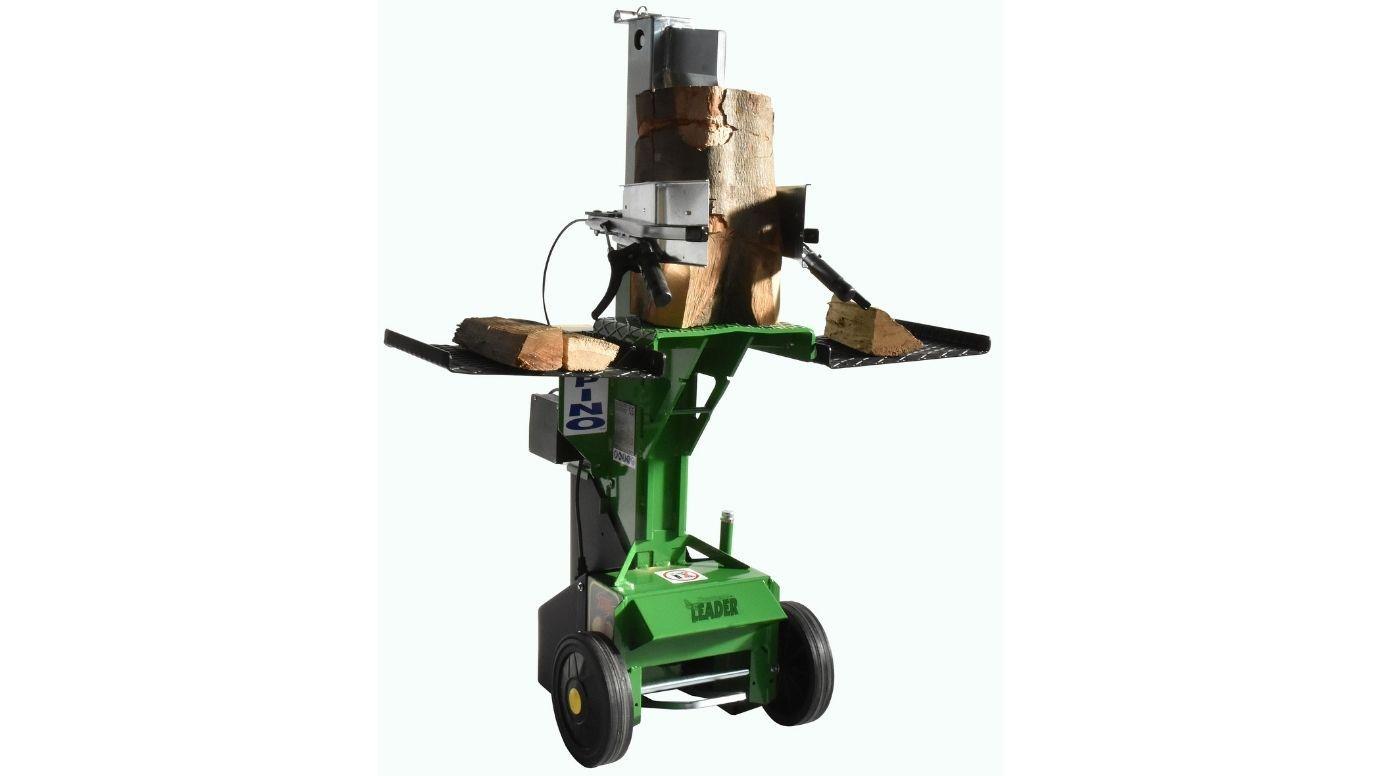

Hydraulic log splitter with vertical working position. With exclusive centering control by pedal
Their strenght and simplicity will surprise you.
They take up very little space and they are always ready to use.
Features |
|---|
The commands are of the “System-LEADER” type. Exclusive log centering control with pedal. |
The cutting stroke is adjustable between 2 and 50 cm. |
Fixed table working position: 54 cm. |
The transport wheels are semi-full wheels: 20 cm dia. on the 6.5 ton model, 25 cm dia. on the 8.5 ton model |
The ABS rear cover is included for 8.5 Ton models. |
| Différences techniques par rapport au modèle précédent |
Extensions on both side included |
| Gardes anti-chute de bois montée sur les leviers, incluses. |
Available versions |
|
|---|---|
EL 230 Volt with single or double pump |
|
EL 400 Volt with single pump |
|
EL 110 Volt 60 hz engines (upon request) |
|
VS petrol engine (upon request) |
|
HVP for tractor with detached and flexible PTO pump (upon request) |
| Model | Splitting force | Power required PS (Hp) - kW |
Splitting dia. capacity cm min - max |
Splitting speed cm/sec |
Total weight (kg) |
|---|---|---|---|---|---|
| 65.100 EL 230 Volt with single pump |
6,5 Ton | 2,5 - 1,85 | 5 - 40 | 3,2 | 106 |
| 65.101 EL 400 Volt with single pump |
6,5 Ton | 2,5 - 1,85 | 5 - 40 | 3,2 | 106 |
| 85.100 EL 230 Volt with double pump |
8,5 Ton | 2,5 - 1,85 | 5 - 50 | 10 - 1,8 | 112 |
|
85.101 |
8,5 Ton | 4- 3 | 5 - 50 | 5,3 | 115 |
| 85.102 VS petrol engine with single pump |
8,5 Ton | 5 - 3,8 | 5 - 50 | 4,5 | 118 |
| 85.103 PTO 540 rpm for tractor with single pump |
8,5 Ton | 15 - 11 | 5 - 50 | 7,5 | 122 |
| NB: Some data might not correspond to the catalogue and price list in force. | |||||
